The condition for translational equilibrium is: $∑F_{ext}=0$.

And that for rotational equilibrium is:$∑{\mathrm{τ}}_{ext}=0$

The force $60\text{N}$is applied at one end of the board weighing $160\text{N}$. The length of the board is $3.00\text{m}$. Since the board is uniform, the center of gravity will be at $1.50\text{m}$.

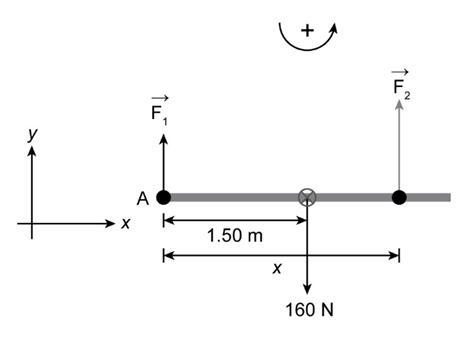

Let the whole set up illustrated as a free body diagram for forces shown in the figure as:

Considering the upward force to be positive and applying the condition for translational equilibrium, we have:

$\begin{array}{rcl}∑F_y& =& F_1+F_2-160=0\\ F_2& =& 160-F_1\\ F_2& =& 160-60\\ F_2& =& 100\text{N}\end{array}$

Again, considering the anticlockwise rotation to be positive and applying the condition for rotational equilibrium, we have:

$\begin{array}{rcl}∑{\mathrm{τ}}_{ext}& =& 0\\ F_2·x-160·\left(\frac{L}{2}\right)& =& 0\\ x& =& \frac{160×1.50}{100}\\ x& =& 2.40\text{m}\end{array}$

Thus, the person needs a force of 100 newtons to lift the board at a distance of 2.40 m from the end of the board.
