Chapter 1: Q2E (page 357)

The center of gravity of a 5.00-kgirregular object is shown in Fig. E11.2. You need to move the center of gravity 2.20鈥�鈥�cmto the left by gluing on a 1.50-kgmass, which will then be considered as part of the object. Where should the center of gravity of this additional mass be located?

Short Answer

Expert verified

Thus, the center of gravity is left shifted by a length of 9.53 cm.

Step by step solution

01

Step-by-Step SolutionStep 1: Center of Gravity

There is a point inside any object where the whole weight of that body is concentrated, balancing all other parts of that body. This point is considered to be the Center of Gravity.

02

Find the distance

Given that the irregular object has mass m1=5.00kg, When the mass m2=1.50kgis added, the center of gravity shifts to the left bydata-custom-editor="chemistry" xcm=2.20cm

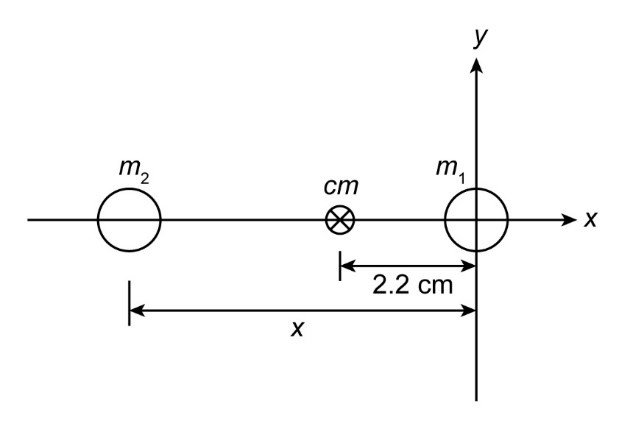

Let the whole set up illustrated as a free body diagram shown in the figure as:

Now, for the center of gravity, we have:

xcm=m1x1+m2x2m1+m2-2.20=5.000+1.50x5.00+1.50-2.20=1.506.50xx=-9.53cm

Thus, the center of gravity of the object, after adding extra mass, is shifted to the left by 9.53 cm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

How many years older will you be 1.00 gigasecond from now? (Assume a 365-day year.)

(a) The recommended daily allowance (RDA) of the trace metal magnesium is 410 mg/day for males. Express this quantity in 碌g/day. (b) For adults, the RDA of the amino acid lysine is 12 mg per kg of body weight. How many grams per day should a 75-kg adult receive? (c) A typical multivitamin tablet can contain 2.0 mg of vitamin B2 (riboflavin), and the RDA is 0.0030 g/day. How many such tablets should a person take each day to get the proper amount of this vitamin, if he gets none from other sources? (d) The RDA for the trace element selenium is 0.000070 g/day. Express this dose in mg/day.

A ball is thrown straight up from the edge of the roof of a building. A second ball is dropped from the roof 1.00slater. Ignore air resistance. (a) If the height of the building is20.0m, what must the initial speed of the first ball be if both are to hit the ground at the same time? On the same graph, sketch the positions of both balls as a function of time, measured from when the first ball is thrown. Consider the same situation, but now let the initial speedv0of the first ball be given and treat the heightof the building as an unknown. (b) What must the height of the building be for both balls to reach the ground at the same time if (i)localid="1655791911691" v0is9.5m/s? (c) Ifv0is greater than some valuevmax, no value ofexists that allows both balls to hit the ground at the same time. Solve forvmax. The valuevmaxhas a simple physical interpretation. What is it? (d) Ifv0is less than some valuevmin, no value ofexists that allows both balls to hit the ground at the same time. Solve forvmin. The valuevminalso has a simple physical interpretation. What is it?

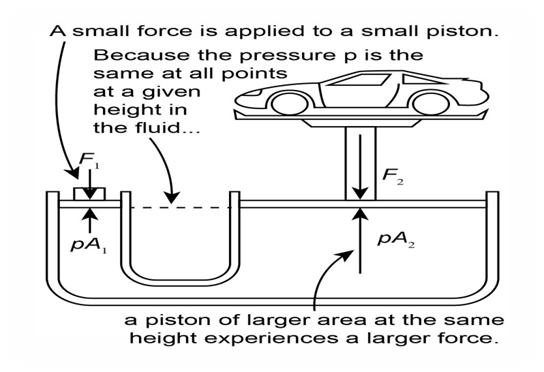

For the hydraulic lift shown in Fig. 12.7, what must be the ratio of the diameter of the vessel at the car to the diameter of the vessel where the force F1 is applied so that a 1520-kg car can be lifted with a force F1 of just 125 N?
