A 2.50-kg block on a horizontal floor is attached to a horizontal spring that is initially compressed 0.0300 m. The spring has force constant 840 N/m. The coefficient of kinetic friction between the floor and the block is μk=0.40. The block and spring are released from rest, and the block slides along the floor. What is the speed of the block when it has moved a distance of 0.0200 m from its initial position? (At this point the spring is compressed 0.0100 m.)

Short Answer

Expert verified

The speed of the block is 0.24 m/s.

Step by step solution

01

Determine the expression for the speed of the block

Given Data:

The mass of the piece of the block is m = 250 kg

The force constant of spring is: k = 840 N/m

The initial compression of spring is: x1=0.0100m

The final compression of spring is:x2=0.0300m

The coefficient of kinetic friction between block and floor is: μk=0.40

The distance moved by the block is x = 0.0200 m

Work-Energy theorem:

The change in the kinetic energy of a moving block is equal to the work done by the block to move for the change in kinetic energies of the block.

Apply the work-energy theorem to calculate the speed of the block:

12mv2=12kx22-x12-μkmgx

Here, m is the mass of the block, g is the gravitational acceleration, v is the speed of the block, k is spring constant, x1andx2are initial and final compressions of spring, x is the distance moved by the block.

02

Determine the speed of the block

Substitute all the values in the above equation and we get,

122.50kg×v2=12840N/m0.0300m2-0.0100m2-0.402.50kg9.8m/s20.200mv=0.24m/s

Therefore, the speed of the block is 0.24 m/s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

At what distance above the surface of the earth is the acceleration due to the earth’s gravity 0.980 m/s2 if the acceleration due to gravity at the surface has magnitude 9.8 m/s2?

A cylindrical bucket, open at the top, is 25.0 cm high and 10.0 cm in diameter. A circular hole with a cross-sectional area 1.50 cm2 is cut in the center of the bottom of the bucket. Water flows into the bucket from a tube above it at the rate of 2.40 x 10-4m3/s. How high will the water in the bucket rise?

You are standing at rest at a bus stop. A bus moving at a constant speed of 5.00 m/spasses you. When the rear of the bus 12 m ispast you, you realize that it is your bus, so you start to run toward it with a constant acceleration of0.960m/s2. How far would you have to run before you catch up with the rear of the bus, and how fast must you be running then? Would an average college student be physically able to accomplish this?

A shaft is drilled from the surface to the center of the earth (see Fig. 13.25). As in Example 13.10 (Section 13.6), make the unrealistic assumption that the density of the earth is uniform. With this approximation, the gravitational force on an object with mass m, that is inside the earth at a distance r from the center, has magnitude Fg=GmEmr/RE3(as shown in Example 13.10) and points toward the center of the earth. (a) Derive an expression for the gravitational potential energyU(r)of the object–earth system as a function of the object’s distance from the center of the earth. Take the potential energy to be zero when the object is at the center of the earth. (b) If an object is released in the shaft at the earth’s surface, what speed will it have when it reaches the center of the earth?

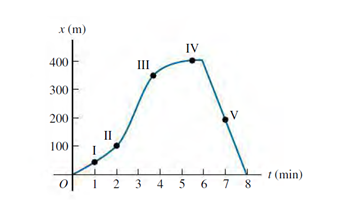

A physics professor leaves her house and walks along the sidewalk toward campus. After 5 min, it starts to rain, and she returns home. Her distance from her house as a function of time is shown in Fig. E2.10 At which of the labeled points is her velocity (a) zero? (b) constant and positive? (c) constant and negative? (d) increasing in magnitude? (e) decreasing in magnitude?
