Chapter 1: Q24E (page 265)

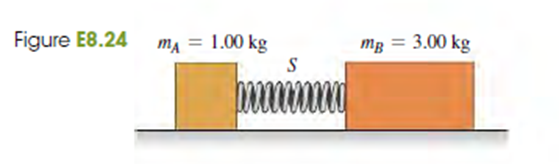

Block A in Fig E8.24 has mass 1.00 kg and block B has mass 3.00 kg. The blocks are forced together, compressing a spring S between them, then the system is released from rest on level, frictionless surface. The spring, which has negligible mass, is not fastened to either block and drops to the surface after it has expanded. Block B acquires a speed of 1.20 m/s. (a) What is the final speed of block A? (b) How much potential energy was stored in the compresses spring?

Short Answer

Expert verified

Thus, (a) the final speed of block A is 3.60 m/s.

(b) the potential energy stored in the compressed spring is 8.64 J

Step by step solution

01

Given in the question.

Mass of block A ism1=1.00kg

Mass of block B is m2=3.00kg

Final speed of block B is V2f=1.20m/s

Final speed of block A isv1f

02

the law of conservation of momentum.

The Law of conservation of momentum states that the total momentum of an isolated system remains conserved during any process.

03

(a) Obtain final speed of block A.

Apply the law of conservation of momentum as follows:

pi=pf0=m1v1f-m2v2fm2v2f=m1v1fv1f=m2v2fm1v1f=-3.00kg1.20m/s1kgv1f=3.60m/s

Hence, the final speed of block A is 3.60 m/s.

04

(b) Potential energy stored

Use the law of conservation of energy:

U=K1+K2=m1v1f22+m2v2f22=121kg脳3.60m/s2+3kg脳1.20m/s2=8.64J

Hence, the potential energy is 8.64 J .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

How many nanoseconds does it take light to travel 1.00 ft in vacuum? (This result is a useful quantity to remember.)?

You are standing at rest at a bus stop. A bus moving at a constant speed of 5.00 m/spasses you. When the rear of the bus 12 m ispast you, you realize that it is your bus, so you start to run toward it with a constant acceleration of0.960m/s2. How far would you have to run before you catch up with the rear of the bus, and how fast must you be running then? Would an average college student be physically able to accomplish this?

As planets with a wide variety of properties are being discovered

outside our solar system, astrobiologists are considering whether and how life

could evolve on planets that might be very different from earth. One recently

discovered extrasolar planet, or exoplanet, orbits a star whose mass is 0.70

times the mass of our sun. This planet has been found to have 2.3 times the

earth鈥檚 diameter and 7.9 times the earth鈥檚 mass. For planets in this size range,

computer models indicate a relationship between the planet鈥檚 density and

composition:

Based on these data, what is the most likely composition of this planet? (a)

Mostly iron; (b) iron and rock; (c) iron and rock with some lighter elements; (d)

hydrogen and helium gases.

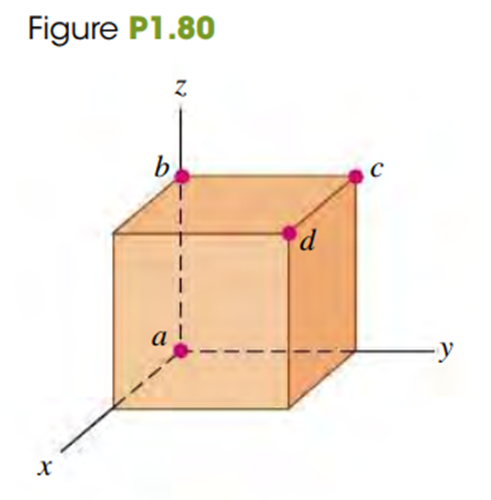

A cube is placed so that one corner is at the origin and three edges are along the x-, y-, and z-axes of a coordinate system (Fig. P1.80). Use vectors to compute (a) the angle between the edge along the z-axis (line ab) and the diagonal from the origin to the opposite corner (line ad), and (b) the angle between line ac (the diagonal of a face) and line ad.
