An airplane is in level flight over Antarctica, where the magnetic field of the earth is mostly directed upward away from the ground. As viewed by a passenger facing toward the front of the plane, is the left or the right wingtip at higher potential? Does

your answer depend on the direction the plane is flying?

Short Answer

Expert verified

The right wing tip is at higher potential.

No, the answer does not depend on the direction of the plane.

Step by step solution

01

The definition of Lorentz Force:

It is the force on moving charge in presence of magnetic field.

It is given by

F=qvB

Where, F is the Lorentz force, v is the velocity of the particle and B is the applied magnetic field and q is charge of the particle.

02

Explanation

If the airplane鈥檚 wingtips are made up of a conductor that contains lots of free charges and moves in a forwarding direction. As the magnetic field of the earth is acting in an upward direction. So, according to Lorentz鈥檚 force, the magnetic force exerted on the positive charge must be in the right direction which causes charges to migrate in the right wingtip making it at higher potential.

When the airplane reverses the direction of flying, the magnetic force also reverses in direction, therefore, the negative charge is now shifted to the left wingtip which means the right wingtip is now at the left and still at higher potential.

Hence, the right wingtip is always at higher potential and it does not depend on the direction of the plane.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

When switch Sin Fig. E25.29 is open, the voltmeter V reads 3.08 V. When the switch is closed, the voltmeter reading drops to 2.97 V, and the ammeter A reads 1.65 A. Find the emf, the internal resistance of the battery, and the circuit resistance R. Assume that the two meters are ideal, so they don鈥檛 affect the circuit.

Fig. E25.29.

A 10.0cm long solenoid of diameter 0.400 cm is wound uniformly with 800 turns. A second coil with 50 turns is wound around the solenoid at its center. What is the mutual inductance of the combination of the two coils?

In Europe the standard voltage in homes is 220 V instead of the 120 used in the United States. Therefore a 鈥100-W鈥 European bulb would be intended for use with a 220-V potential difference (see Problem 25.36). (a) If you bring a 鈥100-W鈥 European bulb home to the United States, what should be its U.S. power rating? (b) How much current will the 100-W European bulb draw in normal use in the United States?

Current passes through a solution of sodium chloride. In

1.00s,2.681016Na+ions arrive at the negative electrode and3.921016CI-

ions arrive at the positive electrode. (a) What is the current passing between

the electrodes? (b) What is the direction of the current?

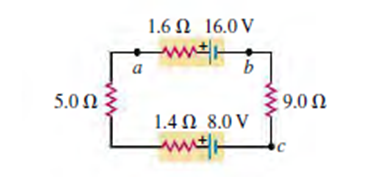

Consider the circuit of Fig. E25.30. (a)What is the total rate at which electrical energy is dissipated in the 5.0-鈩 and 9.0-鈩 resistors? (b) What is the power output of the 16.0-V battery? (c) At what rate is electrical energy being converted to other forms in the 8.0-V battery? (d) Show that the power output of the 16.0-V battery equals the overall rate of consumption of electrical energy in the rest of the circuit.

Fig. E25.30.
