Chapter 4: Q37E (page 843)

In Europe the standard voltage in homes is 220 V instead of the 120 used in the United States. Therefore a 鈥�100-W鈥� European bulb would be intended for use with a 220-V potential difference (see Problem 25.36). (a) If you bring a 鈥�100-W鈥� European bulb home to the United States, what should be its U.S. power rating? (b) How much current will the 100-W European bulb draw in normal use in the United States?

Short Answer

Expert verified
  1. The U.S power rating for a 100-W European bulb is 29.8 W.
  2. The current drawn by a 100-W European bulb is 0.248 A.

Step by step solution

01

(a) Determination of the U.S power rating for 100-W European bulb.

The expression of power is,

P=V2R

The ratio of power dissipation for the U.S to the European is,

PUSPE=VUS2/RVE2/R=VUSVE2=120V220V2PUS=(100W)120V220V2=29.8W

Thus, the U.S power rating for the 100-W European bulb is 29.8 W.

02

(b) Determination of the current drawn by 100-W European bulb.

Expression of power in terms of voltage and current is,

P = Vl

Solve for current I,

l=PV=29.8W120V=0.248A.

Thus, the current drawn by 100-W European bulb is

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

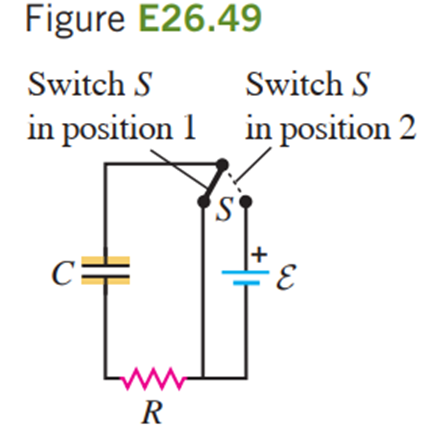

In the circuit shown in Fig. E26.49, C = 5.90 mF, 詯 = 28.0 V, and the emf has negligible resistance. Initially, the capacitor is uncharged and the switch S is in position 1. The switch is then moved to position 2 so that the capacitor begins to charge. (a) What will be the charge on the capacitor a long time after S is moved to position 2? (b) After S has been in position 2 for 3.00 ms, the charge on the capacitor is measured to be 110 mC What is the value of the resistance R? (c) How long after S is moved to position 2 will the charge on the capacitor be equal to 99.0% of the final value found in part (a)?
