Chapter 4: Q8E (page 842)

Current passes through a solution of sodium chloride. In

1.00s,2.68脳1016Na+ions arrive at the negative electrode and3.92脳1016CI-

ions arrive at the positive electrode. (a) What is the current passing between

the electrodes? (b) What is the direction of the current?

Short Answer

Expert verified

a) The current passing between the electrodes is .

b) The direction of current is towards the negative electrode.

Step by step solution

01

Define the current I .

The charge Q per unit time t is known as the currentI.

I=Qt

Here, I is current in ampere A, Q is charge in Columbus Cand is time in secs.

02

Determine the value of the current.

(a)

Determine the current between the electrodes as:

I=Qt=numberofNa++numberofCI-脳qt=2.68脳1016+3.92脳1016脳-1.6脳10-191.00=10.56mA

Hence, current passing between the electrodes is 10.56mAand the direction of current is towards the negative electrode.

03

Determine the direction of current.

(b)

Since, the value of the current is positive so the charge flows from positive side to

the negative electrodes.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Why does an electric light bulb nearly always burn out just as you turn on the light, almost never while the light is shining?

Question: A 540-Welectric heater is designed to operate from120-Vlines. (a) What is its operating resistance?(b) What current does it draw?(c) If the line voltage drops to 110 V what power does the heater take? (Assume that the resistance is constant. Actually, it will change because of the change in temperature.)(d) The heater coils are metallic, so that the resistance of the heater decreases with decreasing temperature. If the change of resistance with temperature is taken into account, will the electrical power consumed by the heater be larger or smaller than what you calculated in part (c)? Explain.

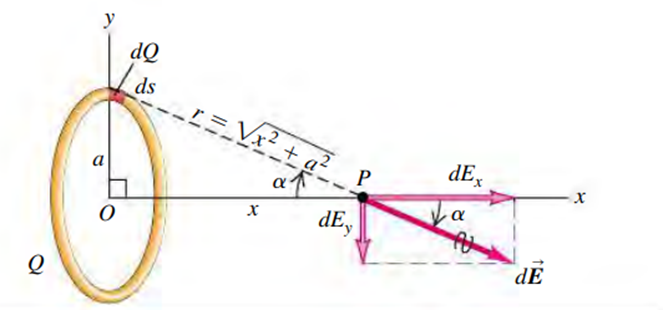

Question:A ring-shaped conductor with radius a = 2.50 cm has a total positive charge Q = +0.125 nC uniformly distributed around it (see Fig. 21.23). The center of the ring is at the origin of coordinates O. (a) What is the electric field (magnitude and direction) at point P, which is on the x-axis at x = 40.0 cm? (b) A point charge q = -2.50 渭C is placed at P. What are the magnitude and direction of the force exerted by the charge q on the ring?
