A long wire carrying 4.50 A of current makes two 90掳 bends, as shown in Fig. E27.35. The bent part of the wire passes through a uniform 0.240-T magnetic field directed as shown in the figure and confined to a limited region of space. Find the magnitude and direction of the force that the magnetic field exerts on the wire.

Short Answer

Expert verified

The magnitude of a long wire carrying current of 4.5 A and making a bend of 90掳

is 0.724N and the angle is63.4掳

Step by step solution

01

Horizontal force

The force acting on the first and the third segment are all in the same direction that is downwards acting on the second segment which points to the right direction, Between the magnetic field and the length is , now using:

F=llBsin蠒

we can write the vertical forces as:

Fy=ILaB+ILcB=(4.50)脳(0.240)+(4.50A)(60.0cm鈭�x)(0.240T)=(4.50A)(0.60mm)(0.240T)=0.648NNow,thehorizontalforceis:Fx=ILB=(4.50A)(0.30m)(0.240T)=0.324T

Now, the horizontal force is:

02

Calculating the force and the and the angle

tan鈦�胃=FyFx=0.6480.324=2.00

Therefore, the angle of the wire is:

胃=2.00=63.4鈭�

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A metal bar with length L, mass m, and resistance R is placed on frictionless metal rails that are inclined at an angle f above the horizontal. The rails have negligible resistance. A uniform magnetic field of magnitude B is directed downward as shown in Fig. P29.69 . the bar is released from rest and slides down the rails. (a) Is the direction of the current induced in the
bar from a to b or from b to a? (b) What is the terminal speed of the bar? (c) What is the induced current in the bar when the terminal speed has been reached? (d) After the terminal speed has been reached, at what rate is electrical energy being converted to thermal energy in the resistance of the bar? (e) After the terminal speed has been reached, at what rate is work being done on the bar by gravity? Compare your answer to that in part (d)

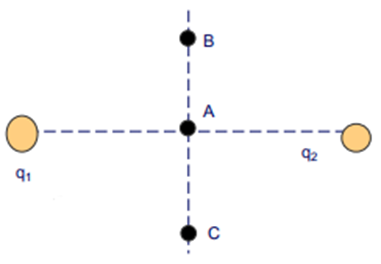

Question: The two charges q1 and q2shown in Fig. have equal magnitudes. What is the direction of the net electric field due to these two charges at points A (midway between the charges), B, and C if (a) both charges are negative, (b) both charges are positive, (c) q1 is positive and q2 is negative?
