String is wrapped around an object of mass 1.5kg and moment of inertia 0.0015kg-m2(the density of the object is not uniform). With your hand you pull the string straight up with some constant force F such that the center of the object does not move up or down, but the object spins faster and faster (Figure 9.62). This is like a yo-yo; nothing but the vertical string touches the object. When your hand is a height y0=0.25mabove the floor, the object has an angular speed Ó¬0=12rad/s. When your hand has risen to a height y=0.35m above the floor, what is the angular speed of the object? Your answer must be numeric and not contain the symbol F.

Short Answer

Expert verified

The angular speed of the object is 41037rad/s.

Step by step solution

01

Identification of given data

The given data is listed below as,

  • The moment of inertia of the string is,I=0.0015kg-m2
  • The mass of the object is,m=1.5kg
  • Initially, the height of the hand above the floor is,y0=0.25m
  • The initial angular speed of the object is, Ó¬0=12rad/s
  • Finally, the height of the hand above the floor is, y=0.35 m
02

Significance of the angular speed

Angular speed is described as the ratio of the change in the angular rotation to the time. However, it is also known as rotational or angular velocity. This is also helps in understanding the rotation of an object.

03

Calculation of the work done

The equation of the change in energy of the system is:

W=Ktrans+Krot …(¾±)

Here, Ktrasis transitional kinetic energy is zero because mass is not moving and Krotis rotational kinetic energy.

Equation (i) can be expressed as follows:

krot=W …(¾±¾±)

The equation of the force can be calculated as:

F=m.g

Here, m is the mass of the object, and g is the acceleration due to gravity.

The equation of the work done is expressed as:

W=Fy-y0

Here, Fis the force exerted, y is the final height and y0is the initial height.

Substitute all the values in above equation.

W=m.g.y-y0

04

Determination of the angular speed for the system

As the moment of inertia is given, the equation of the rotational kinetic energy becomes:

Krot=12IÓ¬2-12IÓ¬20

Here, I is the moment of inertia, Ó¬is the final angular speed, and Ó¬2is the initial angular speed.

Substitute all the values in equation (ii).

12IÓ¬2-12IÓ¬20=m.g.y-y0IÓ¬2-Ó¬20=2.m.g.y-y0Ó¬2-Ó¬20=2.m.g.y-y0IÓ¬=Ó¬02+2.m.g.y-y0I

Substitute all the values in the above equation.

Ӭ=12rad/s2+2×1.2kg×0.35m-0.25m0.0015kg.m2=144rad2/s2+2×1.2kg×0.98m2/s20.0015kg.m2=144rad2/s2+23.52kg.m2/s20.0015kg.m2=144rad/s

Thus, the angular speed of the object is 144rad/s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

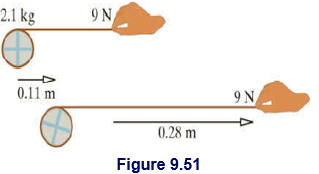

A string is wrapped around a disk of mass 2.1 kg (its density is not necessarily uniform). Starting from rest, you pull the string with a constant force of 9 N along a nearly frictionless surface. At the instant when the center of the disk has moved a distance 0.11 m, your hand has moved a distance of 0.28 m (Figure 9.51).


(a) At this instant, what is the speed of the center of mass of the disk? (b) At this instant, how much rotational kinetic energy does the disk have relative to its center of mass? (c) At this instant, the angular speed of the disk is 75 rad/s. What is the moment of inertia of the disk?

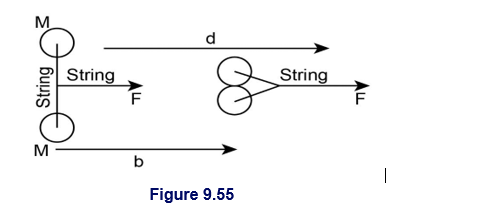

Two disks are initially at rest, each of mass M, connected by a string between their centers, as shown in Figure 9.55. The disks slide on low-friction ice as the center of the string is pulled by a string with a constant force F through a distance d. The disks collide and stick together, having moved a distance b horizontally.

(a) What is the final speed of the stuck-together disks? (b) When the disks collide and stick together, their temperature rises Calculate the increase in internal energy of the disks assuming that the process is so fast that there is insufficient time for there to be much transfer of energy to the ice due to a temperature difference. (Also ignore the small amount of energy radiated away as sound produced in the collisions between the disks)

A chain of metal links with total mass M = 7 kg is coiled up in a tight ball on a low-friction table (Figure 9.52). You pull on a link at one end of the chain with a constant force F= 50 N. Eventually the chain straightens out to its full length = 2.6 m. and you keep pulling until you have pulled your end of the chain a total distance d=4.5 m.

(a) Consider the point particle system. What is the speed of the chain at this instant? (b) Consider the extended system. What is the change in energy of the chain? (c) In straightening out, the links of the chain bang against each other, and their temperature rises. Assume that the process is so fast that there is insufficient time for significant transfer of energy from the chain to the table due to the temperature difference, and ignore the small amountof energy radiated away as sound produced in the collisions among the links. Calculate the increase in internal energy of the chain.

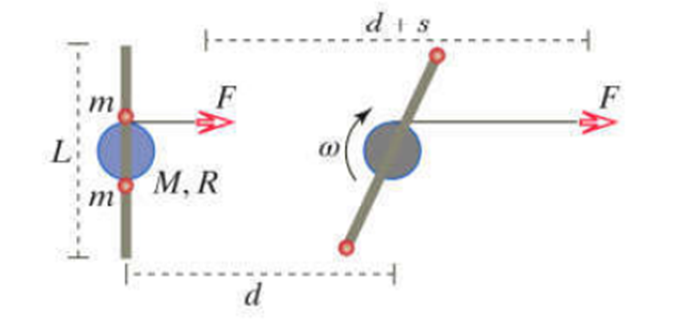

A rod of length Land negligible mass is attached to a uniform disk of mass Mand radius R (Figure 9.64). A string is wrapped around the disk, and you pull on the string with a constant force F . Two small balls each of mass mslide along the rod with negligible friction. The apparatus starts from rest, and when the center of the disk has moved a distance d, a length of string shas come off the disk, and the balls have collided with the ends of the rod and stuck there. The apparatus slides on a nearly frictionless table. Here is a view from above:

(a) At this instant, what is the speed vof the center of the disk? (b) At this instant the angular speed of the disk isÓ¬ . How much internal energy change has there been?

It is sometimes claimed that friction forces always slow an object down, but this is not true. If you place a box of mass Mon a moving horizontal conveyor belt, the friction force of the belt acting on the bottom of the box speeds up the box. At first there is some slipping, until the speed of the box catches up to the speed vof the belt. The coefficient of friction between box and belt isμ. (a) What is the distance d(relative to the floor) that the box moves before reaching the final speed v? Use energy arguments, and explain your reasoning carefully. (b) How much time does it take for the box to reach its final speed? (c) The belt and box of course get hot. Is the effective distance through which the friction force acts on the box greater than or less than d? Give as quantitative an argument as possible. You can assume that the process is quick enough that you can neglect transfer of energyQ due to a temperature difference between the belt and the box. Do not attempt to use the results of the friction analysis in this chapter; rather, apply the methods of that analysis to this different situation. (d) Explain the result of part (c) qualitatively from a microscopic point of view, including physics diagrams.E
