String is wrapped around an object of mass M and moment of inertia I (the density of the object is not uniform). With your hand you pull the string straight up with some constant force F such that the center of the object does not move up or down, but the object spins faster and faster (Figure 9,62). This is like ay0-y0; nothing but the vertical string touches the object.


When your hand is a heighty0above the floor, the object has an angular speedÓ¬0. When your hand has risen to a height y above the floor, what is the angular speedÓ¬of the object? Your result should not containFor the (unknown) radius of the object. Explain the physics principles you are using.

Short Answer

Expert verified

The angular speed of an object is 2mgy-y0I+Ó¬02.

Step by step solution

01

Identification of given data

The given data is listed below as follows,

  • The moment of inertia of the string is, I
  • The mass of the object is, M
  • The force that pulls the string is,F
  • Initially, the height of the hand above the floor is,y0
  • Initially, the height of the hand above the floor is,y
  • The initial angular speed of the object is,Ó¬0
02

Significance of the angular speed

Angular speed is the ratio of change in angular rotation to time. In physics, it is also known as angular velocity and rotational velocity. The magnitude of this is based on how an object rotates or revolves.

03

Determination of the work done for the system

The equation of the change in energy of the system is:

W=Ktrans+Krot …(¾±)

Here,Wis the amount of the work done, Ktrasis transitional kinetic energy is zero because mass is not moving andKrotis rotational kinetic energy.

Substitute all the values in equation (i).

Krot=W …(¾±¾±)

The equation of the work done is expressed as:

W=F.d …(¾±¾±¾±)

Here, F is the force exerted and d is the distance through which the force is exerted.

The equation of the force can be calculated as:

F=m.g

Here, g is the acceleration due to gravity.

The equation of the work done is expressed as:

W=Fy-y0

Here, Fis the force exerted,y is the final height and y0is the initial height.

Substitute all the values in the equation.

W=m.gy-y0

04

Determination of the angular speed for the system

As the moment of inertia is given, the equation of the rotational kinetic energy becomes:

Krot=12IÓ¬2-12IÓ¬20

Here, I is the moment of inertia, Ó¬is the final angular speed, and Ó¬0is the initial angular speed

Substitute all the values in equation (ii).

12IÓ¬2-12IÓ¬20=m.g.y-y0IÓ¬2-Ó¬20=2.m.g.y-y0Ó¬2-Ó¬20=2.m.g.y-y01Ó¬=2mgy-y0I+Ó¬02

Thus, the angular speed of an object is 2mgy-y0I+Ó¬02.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

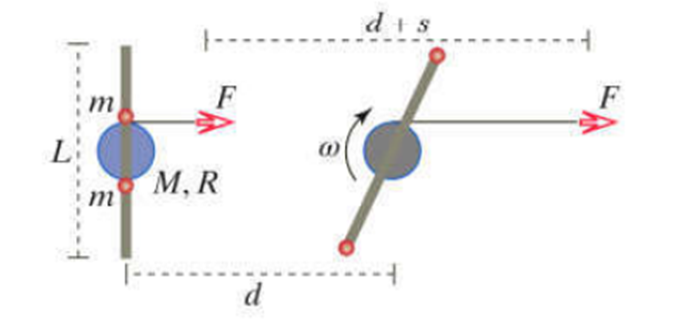

A rod of length Land negligible mass is attached to a uniform disk of mass Mand radius R (Figure 9.64). A string is wrapped around the disk, and you pull on the string with a constant force F . Two small balls each of mass mslide along the rod with negligible friction. The apparatus starts from rest, and when the center of the disk has moved a distance d, a length of string shas come off the disk, and the balls have collided with the ends of the rod and stuck there. The apparatus slides on a nearly frictionless table. Here is a view from above:

(a) At this instant, what is the speed vof the center of the disk? (b) At this instant the angular speed of the disk isÓ¬ . How much internal energy change has there been?

A box contains machinery that can rotate. The total mass of the box plus the machinery is7kg. A string wound around the machinery comes out through a small hole in the top of the box. Initially the box sits on the ground, and the machinery inside is not rotating (left side of Figure 9.61). Then you pull upward on the string with a force of constant magnitude . At an instant when you have pulled 0.6mof string out of the box (indicated on the right side of Figure 9.61), the box has risen a distance of 0.2 mand the machinery inside is rotating.


POINT PARTICLE SYSTEM (a) List all the forms of energy that change for the point particle system during this process. (b) What is theycomponent of the displacement of the point particle system during this process? (c) What is the ycomponent of the net force acting on the point particle system during this process? (d) What is the distance through which the net force acts on the point particle system? (e) How much work is done on the point particle system during this process? (f) What is the speed of the box at the instant shown in the right side of Figure 9.61? (g) Why is it not possible to find the rotational kinetic energy of the machinery inside the box by considering only the point particle system?

EXTENDED SYSTEM (h) the extended system consists of the box, the machinery inside the box, and the string. List all the forms of energy that change for the extended system during this process. (i) What is the translational kinetic energy of the extended system, at the instant shown in the right side of Figure 9.61? (j) What is the distance through which the gravitational force acts on the extended system? (k) How much work is done on the system by the gravitational force? (I) what is the distance through which your hand moves? (m) How much work do you do on the extended system? (n) At the instant shown in the right side of Figure 9.61, what is the total kinetic energy of the extended system? (o) what is the rotational kinetic energy of the machinery inside the box?

A string is wrapped around a uniform disk of massM=1.2kgand radiusR=0.11 m (Figure 9.63). Attached to the disk are four low-mass rods of radiusb=0.14 m,, each with a small massm=0.4 kgat the end (Figure 9.63). The device is initially at rest on a nearly frictionless surface. Then you pull the string with a constant forceF=21 N. At the instant that the center of the disk has moved a distanced=0.026 m, an additional lengthw=0.092 mof string has unwound off the disk. (a) At this instant, what is the speed of the center of the apparatus? Explain your approach. (b) At this instant, what is the angular speed of the apparatus? Explain your approach.

A runner whose mass is 50kgaccelerates from a stop to a speed of 10m/sin 3s. (A good sprinter can run 100min about 10s, with an average speed of 10m/s.) (a) What is the average horizontal component of the force that the ground exerts on the runner’s shoes? (b) How much displacement is there of the force that acts on the sole of the runner’s shoes, assuming that there is no slipping? Therefore, how much work is done on the extended system (the runner) by the force you calculated in the previous exercise? How much work is done on the point particle system by this force? (c) The kinetic energy of the runner increases—what kind of energy decreases? By how much?

Consider a system consisting of three particles:

m1=2kg,v→1=(8,-6,15)m/sm2=6kg,v→2=(-12,9,-6)m/sm3=4kg,v→3=(-24,34,23)m/s

What isKrel, the kinetic energy of this system relative to the centre of mass?
