In a crash test, a truck with mass 2500kgtraveling at 24m/ssmashes head-on into a concrete wall without rebounding. The front end crumples so much that the truck is 0.72mshorter than before,

(a) What is the average speed of the truck during the collision (that is, during the interval between first contact with the wall and coming to a stop)?

(b) About how long does the collision last? (That is, how long is the interval between first contact with the wall and coming to a stop?)

(c) What is the magnitude of the average force exerted by the wall on the truck during the collision?

(d) It is interesting to compare this force to the weight of the tuck. Calculate the ratio of the force of the wall to the gravitational forceon the truck. This large ratio shows why a collision is so damaging.

(e) What approximations did you make in your analysis?

Short Answer

Expert verified

(a) The average speed of the truck during the collision (that is, during the interval between first contact with the wall and coming to a stop) is 12m/s .

(b) The collision lasts about 0.06 s .

(c) The magnitude of the average force exerted by the wall on the truck during the collision is1×106N.

(d) The force on the truck by the wall is greater than the gravitational force by about 41 times

(e)The problem is simplified by ignoring many forces that act upon the truck.

Step by step solution

01

Identification of given data

m=2500kgv→i=-24,0,0m/s∆x=0.72m

02

Define net force and give its formula

The change in momentum of a system divided by the time it changes equals the net external force. The difference between the final and starting values of momentum is the change in momentum.

The net force is given by

F=DpDtwhere∆p→is the change in momentum and∆t is the time interval.

03

Evaluate average speed

(a)Let us calculate the average speed of the truck during the collision i,einterval between first contact with the wall and coming to a stop,

v→avg=v→f-v→i2=0,0,0--24,0,02=12,0,0m/s

The average speed is,

v→avg=122+02+02=12m/s

Thus, the average speed is 12m/s.

04

Evaluate time period

(b) Let us calculate the collision last about.

That is, how long is the interval between first contact with the wall and coming to a stop.

∆t=∆xv→avg=0.7212=0.06s

So, the time interval is 0.06s.

05

Find magnitude of force

(c) Using the momentum principle, the net force on the truck is

F→net=∆p→∆t

we've find the time interval that of collision

F→net=-6×104,0,00.06=-1×106,0,0N

and the magnitude of force is

Hence, the magnitude of force is .

06

Find magnitude of Weight

(d) The magnitude of the weight of the truck is

Fg=mg=25009.8=2.45×104N

Therefore, The force on the truck by the wall is greater than the gravitational force by about 41 times.

07

Final analysis

(e) Many approximations are made to simplify the solution.For example, ignored the flexibility in the structure of the truck and the wall, ignored the air resistance , the friction and assumed the force to be constant during the collision between the wall and the truck.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: The following questions refer to the circuit shown in Figure 18.114, consisting of two flashlight batteries and two Nichrome wires of different lengths and different thicknesses as shown (corresponding roughly to your own thick and thin Nichrome wires).



The thin wire is 50 cm long, and its diameter is 0.25 mm. The thick wire is 15 cm long, and its diameter is 0.35 mm. (a) The emf of each flashlight battery is 1.5 V. Determine the steady-state electric field inside each Nichrome wire. Remember that in the steady state you must satisfy both the current node rule and energy conservation. These two principles give you two equations for the two unknown fields. (b) The electron mobility

in room-temperature Nichrome is about 7×10-5(ms)(Ns). Show that it takes an electron 36 min to drift through the two Nichrome wires from location B to location A. (c) On the other hand, about how long did it take to establish the steady state when the circuit was first assembled? Give a very approximate numerical answer, not a precise one. (d) There are about 9×1028mobile electrons per cubic meter in Nichrome. How many electrons cross the junction between the two wires every second?

A thin diverging lens of focal length 25cm is placed 18cm to the right of a point source of blue light on the axis of the lens. Where is the image of the source? Is it a real or a virtual image? If you placed a sheet of paper at the location of the image, what would you see on the paper?

You observe three carts moving to the left. Cart A moves to the left at nearly constant speed. Cart B moves to the left, gradually speeding up. Cart C moves to the left, gradually slowing down. Which cart or carts, if any, experience a net force to the left?

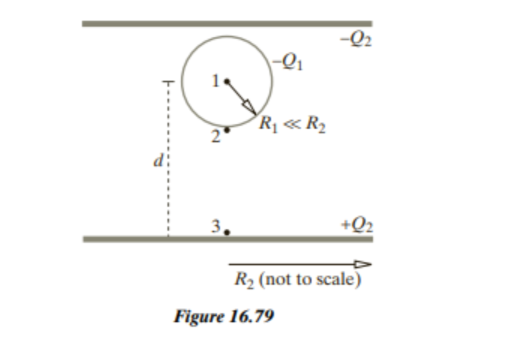

A thin spherical shell made of plastic carries a uniformly distributed negative charge \( - {Q_1}\). As shown in Figure 16.79, two large thin disks made of glass carry uniformly distributed positive and negative charges \( + {Q_2}\)and \( - {Q_2}\). The radius \({R_1}\)of the plastic spherical shell is very small compared to the radius \({R_2}\)of the glass disks. The distance from the center of the spherical shell to the positive disk is d, and d is much smaller than \({R_2}\). (a) Find the potential difference V2 - V1 in terms of the given quantities (Q1, Q2, R1, R2, and d). Point 1 is at the center of the plastic sphere, and point is just outside the sphere. (b) Find the potential difference V3-V2. Point 2 is just below the sphere, and point 3 is right beside the positive glass disk. (c) Suppose that the plastic shell is replaced by a solid metal sphere with radius R1carrying charge -Q1. State whether the absolute magnitudes of the potential differences would be greater than, less than, or the same as they were with the plastic shell in place. Explain briefly, including an appropriate diagram.
