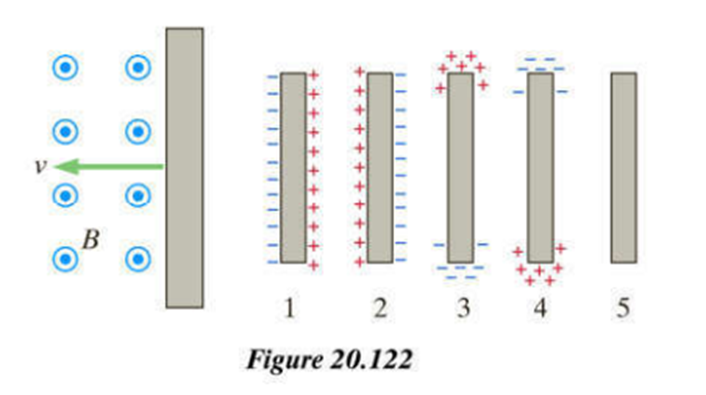

A neutral iron bar is dragged to the left at speed v through a region with a magnetic field B points out of the page (Figure 20.122). Which diagram (1-5) best shows the state of the bar?

Short Answer

Expert verified

The correct diagram is (3).

Step by step solution

01

Given Data

speed=v尘补驳苍别迟颈肠鈥刦颈别濒诲=B

02

Concept

The speed is perpendicular to the magnetic field.

03

Step 3(a): Find which diagram shows the state of the bar

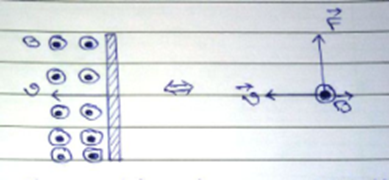

When the bar moves through a uniform magnetic field, the particles with charge q > 0 inside the bar experience a magnetic force

F鈫�=qv鈫�脳B鈫�

Here B鈫� is out of plane and v鈫� is directed towards the left.

F鈫� is directed upward.

This tends to push the +ve charges upward leaving 鈥搗e charges on the lower end.

Hence the correct diagram is (3).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

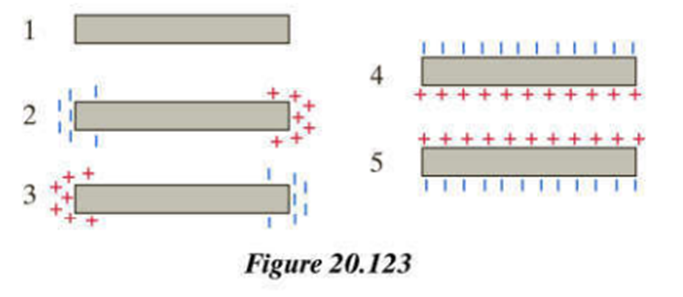

A neutral copper bar oriented horizontally moves upward through a region where there is a magnetic field out of the page. Which diagram (1-5) in Figure 20.123 correctly shows the distribution of charge on the bar?

Calculate the mobile electron density for nickel. A mole of nickel has a mass of 59g (0.059kg), and one mobile electron is released by each atom in metallic nickel. The density of nickel is about 8.8g/cm3, or8.8脳103kg/m3

A long solenoid with diameter 4 cm is in a vacuum, and a lithium nucleus ( 4 neutrons and 3 protons ) is in a clockwise circular orbit inside the solenoid ( Figure 20.102 ). It takes \({\bf{50ns}}\,\left( {{\bf{50 \times 1}}{{\bf{0}}^{{\bf{ - 9}}}}{\bf{s}}} \right)\) for the lithium nucleus to complete one orbit.

  1. Does the current in the solenoid run clockwise or counter clockwise ? Explain including physics diagrams.

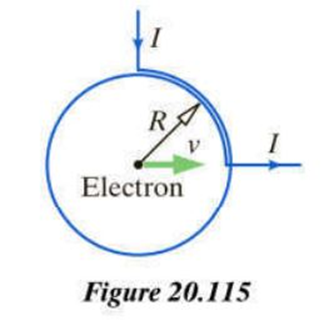

In Figure 20.115 two long straight wires carrying a large conventional current I are connected by one-and-a-quarter turns of wire of radius R. An electron is moving to the right with speed v at the instant that it passes through the center of the arc. You apply an electric field E鈫�at the center of the arc in such a way that the net force on the electron at this instant is zero. (You can neglect the gravitational force on the electron, which is easily shown to be negligible, and the magnetic field of the coil is much larger than the magnetic field of the Earth.)
