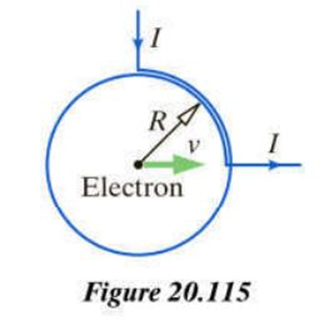

In Figure 20.115 two long straight wires carrying a large conventional current I are connected by one-and-a-quarter turns of wire of radius R. An electron is moving to the right with speed v at the instant that it passes through the center of the arc. You apply an electric field E→at the center of the arc in such a way that the net force on the electron at this instant is zero. (You can neglect the gravitational force on the electron, which is easily shown to be negligible, and the magnetic field of the coil is much larger than the magnetic field of the Earth.)

Determine the direction and magnitude of the electric field . Be sure to explain your work fully; draw and label any vectors you use.

Short Answer

Expert verified

5μ0I8R−j^

Step by step solution

01

Given data

Circular loop having radius R

Speed of electron v

02

Concept/ Formula used

The magnetic field runs parallel to the wire in a perpendicular direction. The direction in which the fingers would curl if you wrapped your right hand's fingers around the wire with your thumb pointing in the direction of the current would indicate the direction of the magnetic field.

03

Calculation for Electric field ,Magnetic field at center

B→=μ0I2R1+14=5μ0I8R

Magnetic field due ti straight part of current carrying wire is zero.

B→=5μ0I8R−k^

For net force on electron to be zero

F→E+F→M=0qE→+qV→×B→=0E→=−V→×B→=−V i^×5μ0I8R−k^

E→=5μ0I8Ri^×k^=5μ0I8R−j^


Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

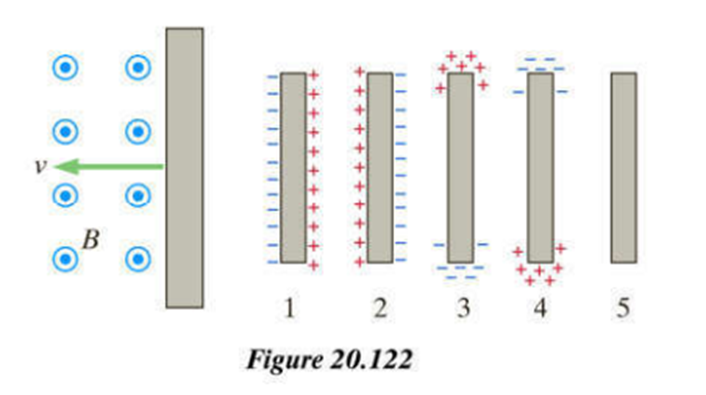

A neutral iron bar is dragged to the left at speed v through a region with a magnetic field B points out of the page (Figure 20.122). Which diagram (1-5) best shows the state of the bar?

In which direction will conventional current flow through the resistor in Figure 20.87? What will be the direction of the magnetic force on the moving bar?

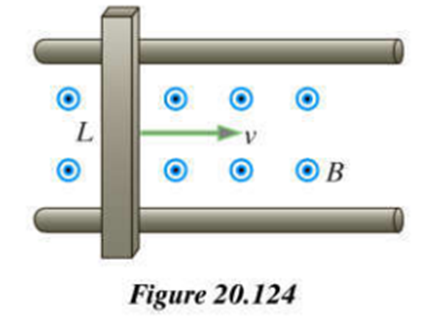

A metal rod of length L slides horizontally at constant speed v on frictionless insulating rails through a region of uniform upward magnetic field of magnitude B (Figure 20.124).

On a diagram, show the polarization of the rod and the direction of the Coulomb electric field inside the rod. Explain briefly. What is the magnitude of the Coulomb electric field inside the rod? What is the potential difference across the rod? What is the emf across the rod? What are the magnitude and direction of the force you have to apply to keep the rod moving at a constant speed v?

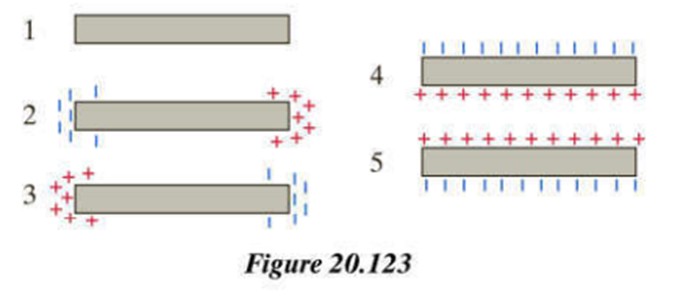

A neutral copper bar oriented horizontally moves upward through a region where there is a magnetic field out of the page. Which diagram (1-5) in Figure 20.123 correctly shows the distribution of charge on the bar?

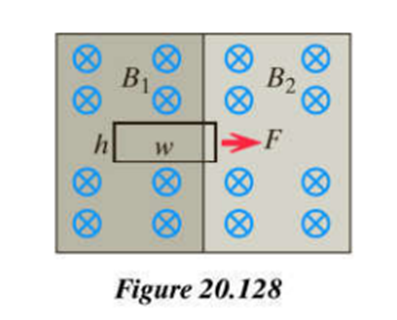

In Figure 20.128 on the left is a region of uniform magnetic field B1into the page, and adjacent on the right is a region of uniform magnetic field B2 also into the page. The magnetic field B2is smaller than B1(B2<B1) . You pull a rectangular loop of wire of length w, height h, and resistance R from the first region into the second region, on a frictionless surface. While you do this you apply a constant force F to the right, and you notice that the loop doesn’t accelerate but moves with a constant speed.
