The graph in Figure 16.63 is a plot of electric potential versus distance from an object. Which of the following could be the object?

(1) A neutron, (2) A sodium ion (Na+), (3) A chloride ion (Cl鈭�), (4) A proton, (5) An electron.

Short Answer

Expert verified

The correct options are (3) a chloride ion and (5) an electron.

Step by step solution

01

Concept/Significance of electric potential

The electric potential is a basic method of expressing how much energy an electric particle has as a result of being in an electric field.

02

Determination of the correct object

The charge's sign affects the potential's sign. the potential of the object is given by,

v=KQr

Here, K is the coulomb constant, Q is the charge on the object and r id the distance between reference point and object.

The potential in the quarter in figure indicates that the object's potential is negative, implying that the object's charge is also negative. As a result, the objectsa chloride ion and an electron arenegative.

Thus, the correct options are (3) a chloride ion and (5) an electron

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

LocationsA=<a,0,0>andB=<b,0,0>are on the +x axis, as shown in Figure 16.61. Four possible expressions for the electric field along the x axis are given below. For each expression for the electric field, select the correct expression (1鈥�8) for the potential differenceVA-VB. In each case K is a numerical constant with appropriate units.

(a)E鈫�=<Kx2,0,0>(b)E鈫�=<Kx3,0,0>(c)E鈫�=<Kx,0,0>(b)E鈫�=<Kx,0,0>(1)VA-VB=0(2)VA-VB=K(a-b)(3)VA-VB=K(1a-1b)(4)VA-VB=K(1a3a-1b3b)(5)VA-VB=12K(b2-a2)(6)VA-VB=KIn(ba)(7)VA-VB=K(a3-b3)(8)VA-VB=12K(1a2-1b2)

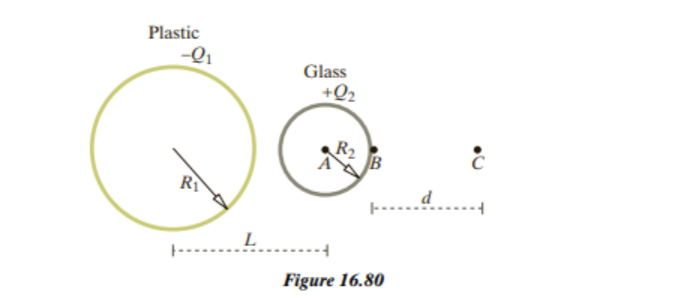

A thin spherical shell of radius \({R_1}\)made of plastic carries a uniformly distributed negative charge \( - {Q_1}\). A thin spherical shell of radius \({R_2}\)made of glass carries a uniformly distributed positive charge \( + {Q_2}\). The distance between centers is \(L\), as shown in Figure 16.80. (a) Find the potential difference \({V_B} - {V_A}\). Location A is at the center of the glass sphere, and location \(B\) is just outside the glass sphere. (b) Find the potential difference \({V_C} - {V_B}\). Location \(B\) is just outside the glass sphere, and location \(C\) is a distance d to the right of \(B\). (c) Suppose the glass shell is replaced by a solid metal sphere with radius R2 carrying charge \( + {Q_2}\). Would the magnitude of the potential difference \({V_B} - {V_A}\) be greater than, less than, or the same as it was with the glass shell in place? Explain briefly, including an appropriate physics diagram.
