A large positive charge pulls on a distant electron. How does the net force on the electron change if a slab of glass is inserted between the large positive charge and the electron? Does the net force get bigger, smaller, or stay the same? Explain, using only labeled diagrams. (Be sure to show all the forces on the electron before determining the net force on the electron, not just the force exerted by the large positive charge. Remember that the part of the net force on the electron contributed by the large positive charge does not change when the glass is inserted: the electric interaction extends through matter.)

Short Answer

Expert verified

The net force on the electron will become smaller.The force on the electron in the presence of a glass slab decreases due to an opposing force (field), which is executed due to the polarization of glass.

Step by step solution

01

Concept

The force between two charges depends upon the charges, the distance between them, and the medium they are in. If the medium between them changes, the force will also change accordingly.

02

The change in the net force

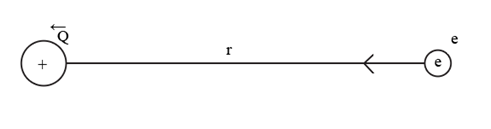

Case 1 : In the air (vacuum)

The net force between charge Q and electron e can be written as when they are at a distance r from each other as,

F→1=14πε0Qer2

Here ε0is the permittivity of free space.

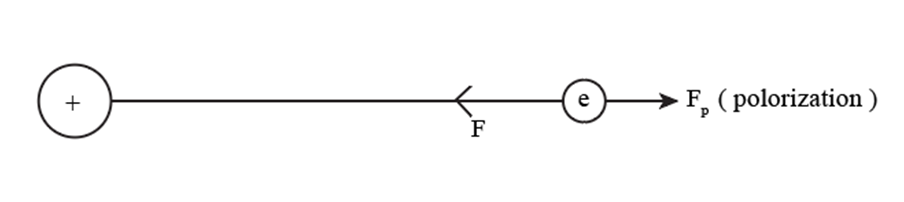

Case 2: The slab of glass

The net force between charge Q and electron e can be written as when they are at a distance r from each other when there is a slab of glass inserted as,

F→2=F→1-F→p=14πε0εrQer2

HereF→pis the force opposite to the attraction force due to the polarization of the slab of glass and εr is the relative permittivity due to the glass.

The only difference is the factor εr in both cases.

Thus, the net force on the electron will become smaller.The force on the electron in the presence of a glass slab decreases due to an opposing force (field), which is executed due to the polarization of glass.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Which of the following are true? Select all that apply. (1) In equilibrium, there is no net flow of mobile charged particles inside a conductor. (2) The electric field from an external charge cannot penetrate to the center of a block of iron. (3) The net electric field inside a block of aluminum is zero under all circumstances. (4) If the net electric field at a particular location inside a piece of metal is not zero, the metal is not in equilibrium. (5) The net electric field at any location inside a block of copper is zero if the copper block is in equilibrium.

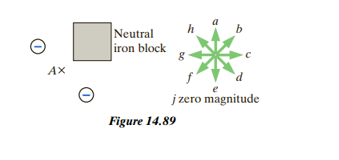

Two small, negatively charged plastic spheres are placed near a neutral iron block, as shown in Figure 14.89. Which arrow (a–j) in Figure 14.89 best indicates the direction of the net electric field at location A?
