Chapter 14: Q45P (page 583)

Which of the following are true? Check all that apply. (1) If the net electric field at a particular location inside a piece of metal is zero, the metal is not in equilibrium. (2) The net electric field inside a block of metal is zero under all circumstances. (3) The net electric field at any location inside a block of copper is zero if the copper block is in equilibrium. (4) The electric field from an external charge cannot penetrate to the center of a block of iron. (5) In equilibrium, there is a net flow of mobile charged particles inside a conductor.

Short Answer

Expert verified

The correct option is (3), The net electric field at any location inside a block of copper is zero if the copper block is in equilibrium.

Step by step solution

01

Significance of the electric field

The electric field is referred to as a region in which a charged particle can exert force on another charged particle.

The net electric field of the metal is zero when the metal is in the equilibrium state but in any other state, the net electric field of the metal cannot be zero.

02

Identification of the correct statement

Statement (1) is incorrect as the net electric field of the metal is zero when the metal is in the equilibrium state. But here, the metal is not in an equilibrium state.

Statement (2) is incorrect as in only equilibrium state, the net electric field in the metal is zero, except this, the net electric field is not zero.

Statement (4) is incorrect as the induced charges mainly cancel the different external fields but the external 鈥渆lectric field鈥� is able to penetrate conductors and hence it can penetrate to the center of the block of iron.

Statement (5) is incorrect as no net electric field acts during the equilibrium state, hence, no force acts to move the different types of mobile charges and no flow of the mobile charges occurs.

Statement (3) is correct as the net electric field in the metal is zero when it is in an equilibrium state. So, the net electric field at any location inside a block of copper is zero if the copper block is in equilibrium (copper is a metal).

Thus, the correct option is (3), The net electric field at any location inside a block of copper is zero if the copper block is in equilibrium.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A metal ball with diameter of a half a centimeter and hanging from an insulating thread is charged up with 1脳1010excess electrons. An initially uncharged identical metal ball hanging from an insulating thread is brought in contact with the first ball, then moved away, and they hang so that the distance between their centers is 20cm.

(a) Calculate the electric force one ball exerts on the other, and state whether it is attractive or repulsive. If you have to make any simplifying assumptions, state them explicitly and justify them.

(b) Now the balls are moved so that as they hang, the distance between their centers is only 5cm. Naively one would expect the force that one ball exerts on the other to increase by a factor of 42=16, but in real life the increase is a bit less than a factor of role="math" localid="1661330186132" 16. Explain why, including a diagram. (Nothing but the distance between centers is changed鈥攖he charge on each ball is unchanged, and no other objects are around.)

Two small, negatively charged plastic spheres are placed near a neutral iron block, as shown in Figure 14.89. Which arrow (a鈥搄) in Figure 14.89 best indicates the direction of the net electric field at location A?

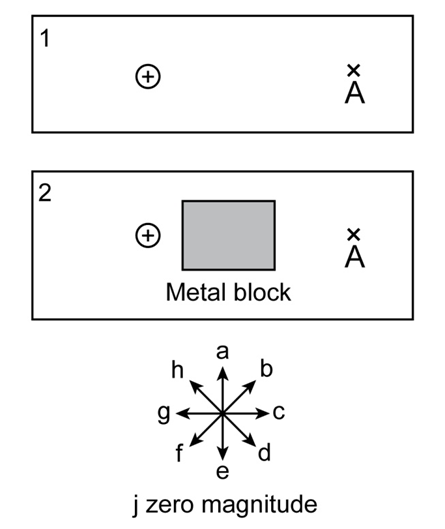

(a)The positively charged particle shown in diagram 1 in Figure 14.94 creates an electric field \({{\bf{\vec E}}_{\bf{p}}}\) at location A. Which of the arrows (a鈥�j) in Figure 14.94 best indicates the direction of \({{\bf{\vec E}}_{\bf{p}}}\) at location A?
