A sphere with a radius 1cm has a charge of 2×10-9C spreads out uniformly over its surface. What is the magnitude of the electric field due to the sphere at a location 4cm from the center of the sphere?

Short Answer

Expert verified

The magnitude of the electric field is 1.12×104N/C.

Step by step solution

01

Identification of given data

The given data is listed below as:

  • The value of the charge of the sphere is,Q=2x10-9C
  • The distance of the electric field from the center of the sphere is,R=4cm×1m100cm=4×10-2m
  • The radius of the sphere is, r=1cm×1m100cm=1×10-2m
02

Definition of Electric field of the sphere

The electric field is referred to as a region that helps an electrically charged particle to exert force on another particle.

The electric field of a sphere is inversely proportional to the radius of an object and directly proportional to the charge of that object.

03

Determination of the electric field

The equation of electric field inside a sphere of uniform charge is expressed as:

E=kQR2

Here, Qis the total charge, Ris the distance of the electric field from the center of the sphere and kis the electric field constant with value 9×109N.m2/C2.

Substitute all the values in the above equation.

E=9×109N.m2/C22×10-9C4×10-2m2=18N.m2/C1.6×10-3m2=1.12×104N/C

Thus, the magnitude of the electric field is 1.12×104N/C.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

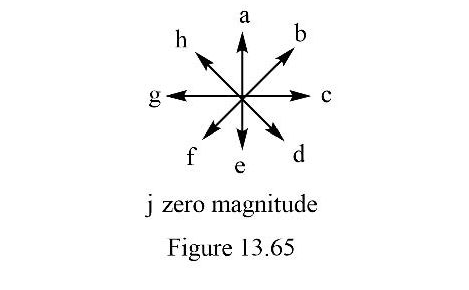

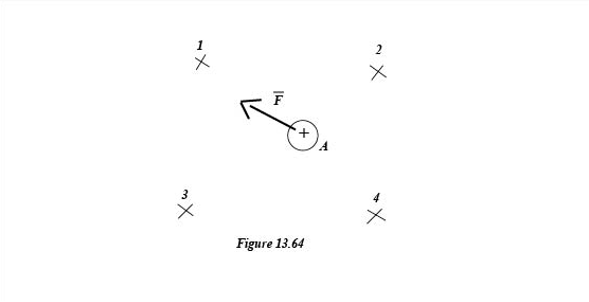

2 In the region shown in Figure 13.64 there is an electric field due to charged objects not shown in the diagram. A tiny glass ball with a charge of5×10-9Cplaced at location A experiences a force of(4×10-5,-4×105,0)N, as shown in the figure. (a) Which arrow in Figure 13.65 best indicates the direction of the electric field at location A? (b) What is the electric field at location A? (c) What is the magnitude of this electric field? (d) Now the glass ball is moved very far away. A tiny plastic ball with charge-6×10-9Cis placed at location A. Which arrow in Figure 13.65 best indicates the direction of the electric force on the negatively charged plastic ball? (e) What is the force on the negative plastic ball? (f) You discover that the source of the electric field at location A is a negatively charged particle. Which of the numbered locations in Figure 13.64 shows the location of this negatively charged particle, relative to location A?

The electric field at a particular location is measured to be <0,-280,0>N/C. What force would a positron experience if placed at this particular location?

An electron is observed to accelerate in the +z direction with an acceleration of .6×1016m/s2. Explain how to use the definition of electric field to determine the electric field at this location, and give the direction and magnitude of the field.

What is the electric field at a location b⇶Ä=<-0.1,-0.1,0>m, due to a particle with charge +3nC located at the origin?

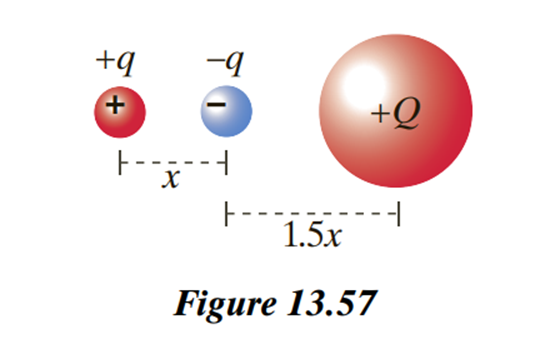

At a given instant in time, three charged objects are located near each other, as shown in Figure 13.57. Explain why the equation

FonQbydipole≈Q(14πε2qsr3)

cannot be used to calculate the electric force on the ball of charge +Q.
Figure 13.57
