A large, thin plastic disk with radiusR = 1.5 m carries a uniformly distributed charge of −Q = −3 × 10−5 C as shown in Figure 15.59. A circular piece of aluminum foil is placed d = 3 mm from the disk, parallel to the disk. The foil has a radius of r = 2 cm and a thickness t = 1 mm.


(a) Show the charge distribution on the close-up of the foil. (b) Calculate the magnitude and direction of the electric field at location × at the center of the foil, inside the foil. (c) Calculate the magnitude q of the charge on the left circular face of the foil.

Short Answer

Expert verified

a) The charges right side of the foil acquire a negative charge, and the left side of the foil acquires a positive charge.

b) The electric field at the center of foil is zero.

c) The charge on left circular face of aluminium foil is 2.67×10-9 C.

Step by step solution

01

Identification of given data

The given data can be listed below,

  • The radius of plastic disk is,R=1.5 m
  • The charge on the plastic disk is,-Q=-3×10-5 C
  • The distance between plastic disk and aluminium foil is,d=3 mm10-3 m1mm
  • The radius of aluminium foil is,role="math" localid="1656936726553" r=2 cm1 m100cm
  • The thickness of aluminium foil is,t=1 mm10-3 m1 mm
02

Concept/Significance of

The collection or redistribution of electric charges in a body as a result of a nearby charged body without any physical contact is known as electrostatic induction.

03

(a) Determination of the charge distribution on the close-up of the foil

The charge induced on the right side of aluminium foil is negative and on the left side it is positive to keep it neutral. A induced charge on the surface of conductor can cancel out the electric field inside it. So, the charge distribution is shown below,

Thus, due to the induction of charges right side of the foil acquire a negative charge, and the left side of the foil acquires a positive charge.

04

(b) Determination of the magnitude and direction of the electric field at location x at the center of the foil

The aluminium foil is a conductor, which implies that no electric field can exist on the inside, resulting in a zero field at the location. Until all external electric fields are cancelled, a conductor has enough free charge to travel to the surface.

Thus, the electric field at the center of foil is zero.

05

(c) Determination of the magnitude q of the charge on the left circular face of the foil

The electric field of the plastic ring at the center of the aluminum disk is given by,

Ep=-Q/A2ε01-d+t/2R2+d+t/2212≈-Q/A2ε0

The electric field of the aluminum disk's surfaces are given by,

E+=-q/a2ε01-t/2R2+t/2212≈q/a2ε0

And,

role="math" localid="1656994121348" E-=-q/a2ε01-t/2R2+t/2212≈q/a2ε0

Here, q is the induced charge and a is the area of aluminium foil.

The net electric field inside the foil is given by,

E++E-+EP=0

Substitute all the values in the above expression the charge on foil is given by,

-Q/A2ε0+q/a2ε0+q/a2ε0=02qa=QAq=Qa2A

Substitute values in the above,

q=Q2r2R2=3×10-5C20.02m1.5m2=2.67×10-9C

Thus, the charge on left circular face of aluminum foil is2.67×10-9C .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

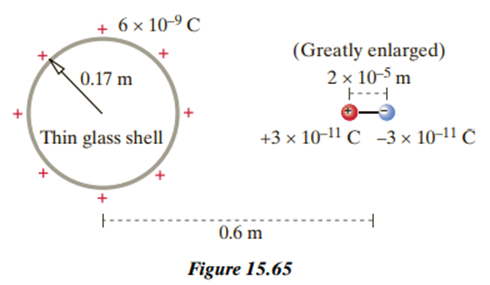

Question: A thin hollow spherical glass shell of radius carries a uniformly distributed positive charge +6×10-9C, as shown in Figure 15.65. To the right of it is a horizontal permanent dipole with charges +3×10-11and -3×10-11separated by a distance (the dipole is shown greatly enlarged for clarity). The dipole is fixed in position and is not free to rotate. The distance from the center of the glass shell to the center of the dipole is 0.6 m.
