Chapter 18: Q4Q (page 755)

State your own theoretical and experimental objections to the following statement: In a circuit with two thick-filament bulbs in series, the bulb farther from the negative terminal of the battery will be dimmer, because some of the electron current is used up in the first bulb. Cite relevant experiments.

Short Answer

Expert verified

The two bulbs will glow equally brightly since the current through them is the same.

Step by step solution

01

Given data

Two bulbs are in series in a circuit.

02

Current in a circuit

The current in a circuit where all loads and batteries are connected in series, is equal everywhere.

03

Determination of the glow of the two bulbs

Experimentally it can be checked by connecting two bulbs in a series that they glow equally brightly. Theoretically since the same number of electrons are passing per unit time through the two bulbs in series after steady state is reached, the current through both of them is the same. Hence the glow will not be affected. Electrons don't get used up when they pass through a load. The two bulbs will glow equally brightly.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

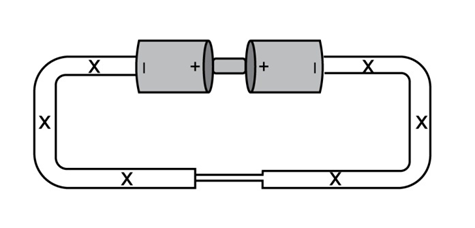

Question: Some students intended to run a light bulb off two batteries in series in the usual way, but they accidentally hooked up one of the batteries backwards, as shown in Figure 18.89 (the bulb is shown as a thin filament).
