A Ferris wheel is a vertical, circular amusement ride. Riders sit on seats that swivel to remain horizontal as the wheel turns. The wheel has a radius R and rotates at a constant rate, going around once in a timeT. At the bottom of the ride, what are the magnitude and direction of the force exerted by the seat on a rider of mass m? Include a diagram of the forces on the rider.

Short Answer

Expert verified

The force exerted by the seat ism4Ï€2RT2+g

Step by step solution

01

Identification of the given data

The wheel has a radius Rand rotates at a constant rate, going around once in a time T.

02

Definition of force

A force is a push or pull on an object because of the interaction of the thing with another object. Every time two things interact, a force is exerted on each of them. The acted force may be of attraction or repulsion. The two items no longer feel the force after the interaction ends

03

Determining the magnitude and direction of force

The net force on an object is equal to the rate of change of momentum and can be written as the sum of two components.

The parallel rate of change of momentumdp→dt||and the perpendicular rate of change of momentumdp→dt⊥are the two elements that we are concerned with.

So, the net force Fnet on the object is given by,

Fnet=dp→dt=dp→dt||+dp→dt⊥

The rock's speed is affected by the parallel rate of change of momentum and given the speed is constant, therefore, the parallel rate is zero, and it equals the size of the momentum rate change.

dp→dt||=0

As a result, the rate change here is the direction change owing to the perpendicular rate of change.

At speeds far slower than the speed of light, the net force applied on the rider equals the rate change of momentum, and the magnitude of the perpendicular rate change is given by,

Fnet=dp→dt⊥=mv2R

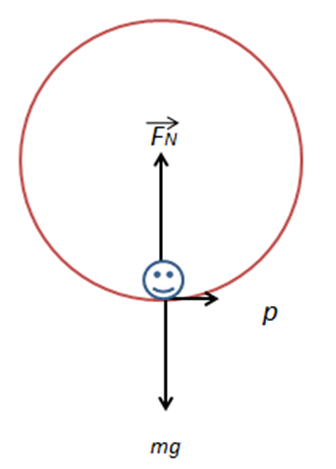

Also, the rider is under two forces, the force exerted by the seat where its direction is upwardFN, and his weight mg and it is downward as shown in the free-body diagram below, so the net force of both forces is:

Fnet=FN-mg,

Where the negative sign is due to the opposite direction of the forces.

Therefore,

FN-mg=mv2RFN=mv2R+mg

The speed is the change in the distance with time. So, it is given by

v=dT

The circumference is given by

2Ï€R

Where, R is the radius of the circle.

So, the distance where the engineer travel is:

d=2Ï€R

Therefore,

v=2Ï€Rt

Now, put the expression forνto get a relationship

FN=mv2R+mg=mR2Ï€RT2+mg=m4Ï€2RT2+g

Thus, the force exerted by the seat is m4Ï€2RT2+g.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A small block of mass m is attached to a spring with stiffness ks and relaxed lengthL. The other end of the spring is fastened to a fixed point on a low-friction table. The block slides on the table in a circular path of radiusR>L. How long does it take for the block to go around once?

You're driving a vehicle of mass 1350kgand you need to make a turn on a flat road. The radius of curvature of the turn is. The coefficient of static friction and the coefficient of kinetic friction are both 0.25.

(a) What is the fastest speed you can drive and still make it around the turn? Invent symbols for the various quantities and solve algebraically before plugging in numbers.

(b) Which of the following statements are true about this situation?

(1) The net force is nonzero and points away from the centre of the kissing circle. (2) The rate of change of the momentum is nonzero and points away from the centre of the kissing circle.

(3) The rate of change of the momentum is nonzero and points toward the centre of the kissing circle.

(4) The momentum points toward the centre of the kissing circle.

(5) The centrifugal force balances the force of the road, so the net force is zero. (6) The net force is nonzero and points two and the centre of the kissing circle.

(c) Look at your algebraic analysis and answer the following question. Suppose that your vehicle had a mass five times as big(6750kg). Now what is the fastest speed you can drive and still make it around the turn?

(d) Look at your algebraic analysis and answer the following question. Suppose that you have the originalvehicle but the turn has a radius twice as large (152 m). What is the fastest speed you can drive and still make it around the turn? This problem shows why high-speed curves on freeways have very large radii of curvature, but low-speed entrance and exit ramps can have smaller radii of curvature.

In the dark in outer space, you observe a glowing ball of known mass 2kgmoving in the xyplane at constant speed in a circle of radius, 6.5 m with the centre of the circle at the origin(0,0,0m). You can't see what's making it move in a circle. At time t=0 the ball is at location(-6,5,0,0)mand has velocity(0,40,0)m/s.

On your own paper draw a diagram of the situation showing. the circle and showing the position and velocity of the ball at time r=0. The diagram will help you analyse the situation. Use letters a-j figure 5.75) to answer questions about directions ( +xto the right, +yup).

At time:t=0

(a) What is the direction of the vectorp⇶Ä?

(b) What are the magnitude and direction localid="1656743973413" (d|p⇶Ä|dt)ÒÏofthe parallel component ofdp⇶Ä/dt?

(c) What are the magnitude and direction oflocalid="1656744314609" |p⇶Ä|dp⇶Ä/dt, the perpendicular component ofdp⇶Ä/dt?

(d) Even though you can't see what's causing the motion, what can you conclude must be the direction of the vectorF⇶Änet?

(e) Even though you can't see what's causing the motion, what can you conclude must be the vectorF⇶Änet?

(f) You learn that at time, two forces act on the ball, and that at this instant one of these forces isF⇶Ä1={196,-369,0}N. What is the other force?

You swing a bucket full of water in a vertical circle at the end of a rope. The mass of the bucket plus the water is 3.5kg.The center of mass of the bucket plus the water moves in a circle of radius. At the instant that the bucket is at the top of the circle, the speed of the bucket is 4 m/s. What is the tension in the rope at this instant?

The radius of a merry-go round is 11m, and it takes 12s to go around one. What is the speed of an atom in the outer rim?
