What is the minimum speedthat a roller coaster car must have in order to make it around an inside loop and just barely lose contact with the track at the top of the loop (see Figure 5.76)? The centre of the car moves along a circular arc of radius. Include a carefully labelled force diagram. State briefly what approximations you make. Design a plausible roller coaster loop, including numerical values for vand R.

Short Answer

Expert verified

The minimum speed that a roller coaster car must have in order to make it around an inside loop and just barely lose contact with the track at the top of the loop is Rg.

The labelled force diagram,

Step by step solution

01

Given data

The centre of the car moves along a circular arc of radius R.

02

Definition of force

A force is a push or pull on an object is because of the interaction of the thing with another object. Every time two things interact, a force is exerted on each of them .The acted force may be of attraction or of repulsion .The two items no longer feel the force after the interaction ends

03

Determining the minimum speed a roller coaster car

The net force on an object is equal to the rate of change of momentum and can be written as the sum of two components.

The parallel rate of change of momentumdp⇶Ädtand the perpendicular rate of change of momentumdp⇶Ädtare the two elements that we are concerned with.

Fnet=dp⇶Ädt=dp⇶Ädtll+dp⇶Ädt

In this case, the force acting on the object is in +y or -y direction, therefore, there is no parallel force and equals zero.

dp⇶Ädt=0

As a result, the rate change is the direction change owing to the perpendicular rate of change.

The net force exerted on the object equals the rate change of the momentum and the magnitude of the perpendicular rate change at speeds much less than the speed of light is given by

Fnet=dp⇶Ädt=mv2R

Where R the radius of the circle path is, v is the speed of the roller car and m is the mass of the car.

Also, the car is under two forces, the centrifugal forceFc and its weightmg, and at the top of the path, both forces are in opposite direction to each other so the net force of both forces is

Fnet=Fc-mg

To make the roller car just barely lose contact with the track at the top of the loop, the net force on the truck must be zero.

Fnet=Fc-mg0=mv2R-mgv2R=gv=Rg

The speed, in this case, depends on the radius of the circle path.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A planet orbits a star in an elliptical orbit. At a particular instant the momentum of the planet is (-2.6×1029,-1.0×1029,0)kg.m/s, and the force on the planet by the star is (-2.5×1022,-1.4×1023,0)N. Find F∥and F⊥.

A child of mass 40kgsits on a wooden horse on a carousel. The wooden horse is 5mfrom the center of the carousel, which completes one revolution every 90s. What is(dp→/dt)pÁåœfor the child, both magnitude and direction? What is|p→|(dpÁåœ/dt)for the child? What is the net force acting on the child? What objects in the surroundings exert this force?

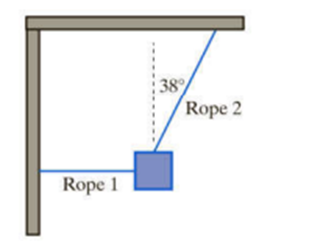

A box of mass 40 kghangs motionless from two ropes, as shown in Figure. The angle is 38°. Choose the box as the system. The xaxis runs to the right, the yaxis runs up, and the zaxis is out of the page.

(a) Draw a free-body diagram for the box.

(b) Isdp→/dtof the box zero or nonzero?

(c) What is the ycomponent of the gravitational force acting on the block? (A component can be positive or negative).

(d) What is theycomponent of the force on the block due to rope 2?

(e) What is the magnitude of localid="1657085603204" F→2?

(f) What is thexcomponent of the force on the block due to rope 2?

(g) What is the xcomponent of the force on the block due to rope 1?

In outer space two identical spheres are connected by a taut steel cable, and the whole apparatus rotates about its centre. The mass of each sphere is 60kg. The distance between centres of the spheres is3.2m. At a particular instant the velocity of one of the spheres is(0.5,0) m/s and the velocity of the other sphere is 0,-5,0 m/s. What is the tension in the cable?

A particle moving at nearly the speed of light (v≈c) passes through a region where it is subjected to a magnetic force of constant magnitude that is always perpendicular to the momentum and has a magnitude of 2×10-10N. As a result, the particle moves along a circular arc with a radius of 8m. What is the magnitude of the momentum of this particle?
