What is the minimum speed νthat a roller coaster car must have in order to make it around an inside loop and just barely lose contact with the track at the top of the loop (see Figure 5.76)? The centre of the car moves along a circular arc of radius. Include a carefully labelled force diagram. State briefly what approximations you make. Design a plausible roller coaster loop, including numerical values for ν andR.

Short Answer

Expert verified

The minimum speed νthat a roller coaster car must have to make it around an inside loop and just barely lose contact with the track at the top of the loop isRg.

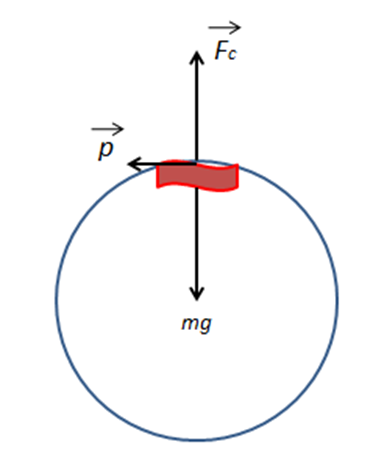

The labelled force diagram is:

Step by step solution

01

Identification of the given data

The centre of the car moves along a circular arc of radius R.

02

Definition of force

A force is a push or pull on an object because of the interaction of the thing with another object. Every time two things interact, a force is exerted on each of them. The acted force may be of attraction or repulsion. The two items no longer feel the force after the interaction ends.

03

Determining the minimum speed ν that a roller coaster car must have to make it around an inside loop and just barely lose contact with the track at the top of the loop

The net force on an object is equal to the rate of change of momentum and can be written as the sum of two components.

The parallel rate of change of momentumdp→dt||and the perpendicular rate of change of momentumdp→dt⊥are the two elements that we are concerned with.

So, the net forceFneton the object is given by

Fnet=dp→dt=dp→dt||+dp→dt⊥

In this case, the force acting on the object is in +yor-ydirection, therefore, there is no parallel force and equals zero.

dp→dt||

As a result, the rate change is the direction change owing to the perpendicular rate of change.

The net force exerted on the object equals the rate change of the momentum and the magnitude of the perpendicular rate change at speeds much less than the speed of light is given by

Fnet=dp→dt⊥=mv2R

Where R is the radius of the circle path, νis the speed of the roller car, and is the mass of the car.

Also, the car is under two forces, the centrifugal force Fc, and its weight mg, and at the top of the path, both forces are in opposite direction to each other so the net force of both forces is:

Fnet=Fc-mg

To make the roller car just barely lose contact with the track at the top of the loop, the net force on the truck must be zero.

Fnet=Fc-mg0=mv2R-mgv2R=gv=Rg

The speed, in this case, depends on the radius of the circle path.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A proton moving in a magnetic field follows the curving path shown in Figure. The dashed circle is the kissing circle tangent to the path when the proton is at location A. The proton is traveling at a constant speed of 7.0 x 105 m/s, and the radius of the kissing circle is 0.08m . The mass of a proton is 1.7 x 10-27kg . Refer to the directional arrows shown at the right in Figure when answering the questions below.

(a) When the proton is at location A, what are the magnitude and direction of (dp→/dt)p^ , the parallel component of (dp→/dt)?

(b) When the proton is at location A, what are the magnitude and direction of |p→|p^/dl , the perpendicular component of(dp→/dt) ?

In June 1997 the NEAR spacecraft , on its way to photograph the asteroid Eros, passed near the asteroid Mathilde. After passing Mathilde, on several occasions rocket propellant was expelled to adjust the spacecraft's momentum in order to follow a path that would approach the asteroid Eros, the final destination for the mission. After getting close to Eros, further small adjustments made the momentum just right to give a circular orbit of radius around the asteroid. So much propellant had been used that the final mass of the spacecraft while in circular orbit 45km(45×103m)around Eros was only . The spacecraft took 1.04days to make one complete circular orbit around Eros. Calculate what the mass of Eros must be.

A sports car (and its occupants) of massis moving over the rounded top of a hill of radius RAt the instant when the car is at the very top of the hill, the car has a speed v. You can safely neglect air resistance.

(a) Taking the sports car as the system of interest, what object(s) exert non negligible forces on this system?

(b) At the instant when the car is at the very top of the hill, draw a diagram showing the system as a dot, with force vectors whose tails are at the location of the dot. Label the force vectors (that is, give them algebraic names). Try to make the lengths of the force vectors be proportional to the magnitudes of the forces.

(c) Starting from the Momentum Principle calculates the force exerted by the road on the car.

(d) Under what conditions will the force exerted by the road on the car be zero? Explain.

Question: A student said, "When the Moon goes around the Earth, there is an inward force due to the Moon and an outward force due to centrifugal force, so the net force on the Moon is zero." Give two or more physics reasons why this is wrong.

A ball of unknown mass mis attached to a spring. In outer space, far from other objects, you hold the other end of the spring and swing the ball around in a circle of radius 1.5 mat constant speed.

(a) You time the motion and observe that going around 10times takes 6.88 s. What is the speed of the ball?

(b) Is the momentum of the ball changing or not? How can you tell?

(c) If the momentum is changing, what interaction is causing it to change? If the momentum is not changing, why isn't it?

(d) The relaxed length of the spring is 1.2m, and its stiffness is 1000 N/m. While you are swinging the ball, since the radius of the circle is 1.5m, the length of the spring is also 1.5m.What is the magnitude of the force that the spring exerts on the ball?

(e) What is the mass mof the ball?
