Question: How does the final (equilibrium) charge on the capacitor plates depend on the particular resistor (for example, the kind of bulb or the length of Nichrome wire) in the circuit during charging? Explain briefly.

Short Answer

Expert verified

The capacitor's charging depends on the cross-sectional area of the wire or filament of the bulb.

Step by step solution

01

Assume some data on behalf of given question.

Let assume the resistance of the filament of the nichrome wire isR .

Area of the capacitor plates is A.

02

Determine the formulas that shows the relation between the final charge and resistance of the element.

The electron charge or current is defined as the number of the electron enter the wire every second.

The expression to calculate the electron current at the location Dis given as follows.

role="math" localid="1668592073069" i=nAμE …… (i)

Here, is the number of the electron, is the cross-sectional area, is the mobility and is the electrical field.

03

Determine that how the final charge on the capacitor depends on the particular resistance.

The electric field inside the capacitor plates is constant, and the current in the filament of the bulb and wire varies during the charging. The mobility is a constant value for the particular material. Therefore, the current depends on the cross-sectional area.

From equation (i), the current in the bulb's filament is directly proportional to the cross-sectional area. If the cross-sectional area of the wire or filament of the bulb is low, then the current through the wire and bulb's filament is low.

Hence, the capacitor's charging depends on the cross-sectional area of the wire or filament of the bulb.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

When a thin-filament light bulb is connected to two 1.5Vbatteries in series, the current is0.075AWhat is the resistance of the glowing thin-filament bulb?

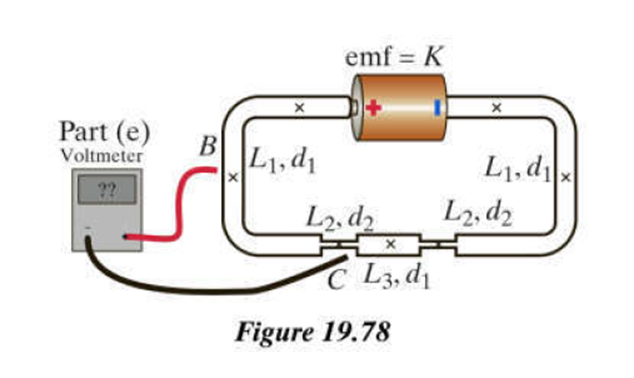

A circuit consists of a battery, whose emf is K, and five Nichrome wires, three thick and two thin as shown in Figure 19.78. The thicknesses of the wires have been exaggerated in order to give you room to draw inside the wires. The internal resistance of the battery is negligible compared to the resistance of the wires. The voltmeter is not attached until part (e) of the problem. (a) Draw and label appropriately the electric field at the locations marked × inside the wires, paying attention to appropriate relative magnitudes of the vectors that you draw. (b) Show the approximate distribution of charges for this circuit. Make the important aspects of the charge distribution very clear in your drawing, supplementing your diagram if necessary with very brief written descriptions on the diagram. Make sure that parts (a) and (b) of this problem are consistent with each other. (c) Assume that you know the mobile-electron density n and the electron mobility u at room temperature for Nichrome. The lengths (L1,L2,L3)and diameters (d1,d2)of the wires are given on the diagram. Calculate accurately the number of electrons that leave the negative end of the battery every second. Assume that no part of the circuit gets very hot. Express your result in terms of the given quantities (K,L1,L2,L3,d1,d2,nandu). Explain your work and identify the principles you are using. (d) In the case that d2≪d1, what is the approximate number of electrons that leave the negative end of every second? (e) A voltmeter is attached to the circuit with its + lead connected to location B (halfway along the leftmost thick wire) and its - lead connected to location C (halfway along the leftmost thin wire). In the case that d2≪d1, what is the approximate voltage shown on the voltmeter, including sign? Express your result in terms of the given quantities (K,L1,L2,L3,d1,d2,nandu).
