At a particular instant the location of an object relative to location \(A\) is given by the vector \({\overrightarrow r _A} = \left\langle {6,6,0} \right\rangle {\rm{m}}\). At this instant the momentum of the object is \(\overrightarrow p = \left\langle { - 11,13,0} \right\rangle {\rm{kg}} \cdot {\rm{m}}/{\rm{s}}.\) What is the angular momentum of the object about location \(A\)?

Short Answer

Expert verified

The angular momentum of the object about location \(A\) is \(\left( {0,1,144} \right){\rm{kg}} \cdot {\rm{m}}/{{\rm{s}}^2}\)

Step by step solution

01

Definition of Angular Momentum

The rotating inertia of an object or system of objects in motion about an axis that may or may not pass through the object or system is described by angular momentum.

02

Given data

Position of an object to point \(A\) is \({\overrightarrow r _A} = \left\langle {6,6,0} \right\rangle m\)

Here\(x - \) component of the position of the object, \({r_x} = 6\)

\(y - \)component of the position of the object, \({r_y} = 6\)

\(z - \)component of the position of the object,\({r_z} = 0\)

Momentum of the object relative to the point \(A\),\({\overrightarrow p _A} = \left\langle { - 11,13,0} \right\rangle kg \cdot m/s\)

Here\(x - \) component of the momentum of the object, \({p_x} = - 11\)

\(y - \)component of the momentum of the object, \({p_y} = 13\)

\(z - \)component of the momentum of the object, \({p_z} = 0\)

03

Find the Angular Momentum of the object at point A

Angular momentum of the object relative to point \(A\)is

\({\overrightarrow L _A} = {\overrightarrow r _A} \times \overrightarrow p \)

\(\begin{aligned}{}{\overrightarrow L _A} &= \left( {{r_y}{p_z} - {r_z}{p_x} - {r_x}{p_z},{r_x}{p_y} - {r_y}{p_x}} \right)\\ &= \left( {0 - 0,0 - 0,\left( 6 \right)\left( {13} \right) - \left( 6 \right)\left( { - 11} \right)} \right){\rm{kg}} \cdot {\rm{m}}/{{\rm{s}}^2}\\ &= \left( {0,078 + 66} \right){\rm{kg}} \cdot {\rm{m}}/{{\rm{s}}^2}\\ &= \left( {0,1,144} \right){\rm{kg}} \cdot {\rm{m}}/{{\rm{s}}^2}\end{aligned}\)

Hence, the Angular momentum of the object about point \(A\)is\(\left( {0,1,144} \right){\rm{kg}} \cdot {\rm{m}}/{{\rm{s}}^2}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A sick of length Land mass Mhangs from a low-friction axle (Figure 11.90). A bullet of mass mtravelling at a high speedstrikes vnear the bottom of the stick and quickly buries itself in the stick.

(a) During the brief impact, is the linear momentum of the stick + bullet system constant? Explain why or why not. Include in your explanation a sketch of how the stick shifts on the axle during the impact. (b) During the brief impact, around what point does the angular momentum of the stick + bullet system remain constant? (c) Just after the impact, what is the angular speed Ӭof the stick (with the bullet embedded in it) ? (Note that the center of mass of the stick has a speed ӬL/2.The moment of inertia of a uniform rod about its center of mass is112ML2.(d) Calculate the change in kinetic energy from just before to just after the impact. Where has this energy gone? (e) The stick (with the bullet embedded in it) swings through a maximum angleθmaxafter the impact, then swing back. Calculate θmax.

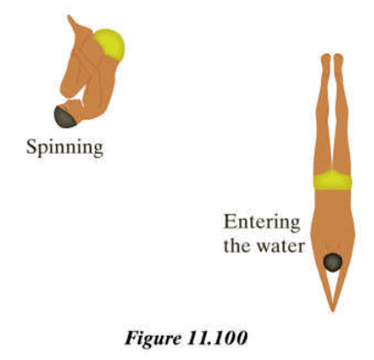

A diver dives from a high platform (Figure 11.100). When he leaves the platform, he tucks tightly and performs three complete revolutions in the air, then straightens out with his body fully extended before entering the water. He is in the air for a total time of1.4 s.What is his angular speed Ó¬ just as he enters the water? Give a numerical answer. Be explicit about the details of your model, and include (brief) explanations. You will need to estimate some quantities.

What is the angular momentum \({\overrightarrow L _A}\)If \({\overrightarrow r _A} = (9, - 9,0)\)m and \(\overrightarrow p = (12,10,0)\)\(kg.m/s?\)

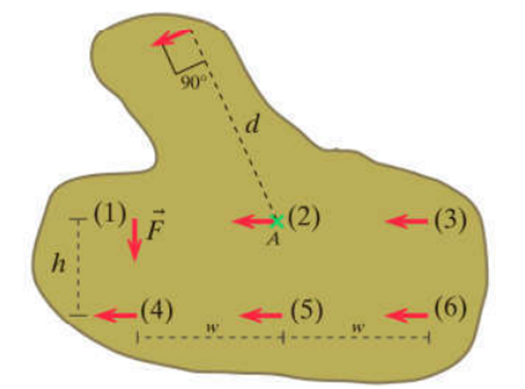

As shown in figure, seven forces all with magnitude \(\left| {\overrightarrow F } \right| = 25{\rm{ N}}\) are applied to an irregularly shaped object. Each force is applied at a different location on the object, indicated by the tail of the arrow; the directions of the force differ. The distances shown in the diagram have these values: \(w = 9{\rm{ m}},{\rm{ }}h = 14{\rm{ m}}\)and\(d = 13{\rm{ m}}\). For each force, calculate the \(z\)-component of the torque due to that force, relative to location A (\(x\) to the right, \(y\)up, \(z\) out of the page). Make sure you give the correct sign. Relative to location A, what is the \(z\) component of the net torque acting this object?

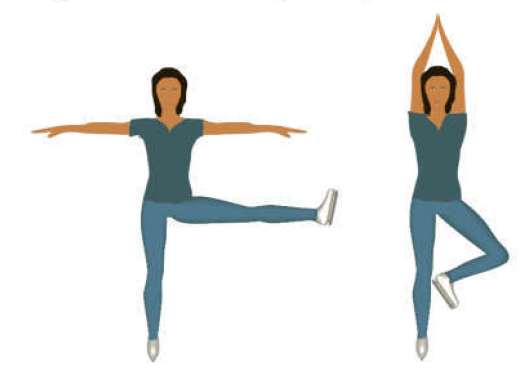

An ice skater whirls with her arms and one leg stuck out as shown on the left in Figure 11.93, making one complete turn inThen she quickly moves her arms up above her head and pulls her leg in as shown at the right in Figure 11.93.

(a) Estimate how long it now takes for her to make one complete turn. Explain your calculations, and state clearly what approximations and estimates you make. (b) Estimate the minimum amount of chemical energy she must expended to change her configuration.
