The functiony(x,t)=(15.0cm)cos(ττ³æ-15ττ³Ù), with x in meters and t in seconds, describes a wave on a taut string. What is the transverse speed for a point on the string at an instant when that point has the displacement y=+12.0cm?

Short Answer

Expert verified

The transverse speed for a point on the string at an instant when that point has the displacement y=+12.0cm is4.24m/s .

Step by step solution

01

Understanding the concept of the wave equation

The speed of the oscillating particle perpendicular to the direction of motion of the wave is known as the transverse velocity of that wave.

Formula:

The transverse speed of the wave, u=dydtu=dydt (i)

02

Calculation for the transverse speed

Using equation (i), the transverse speed of the wave is given as:

u=ddt15.0cmcosÏ€³æ-15Ï€³Ù=225Ï€cmsinÏ€³æ-15Ï€³Ù.......................(a)

Squaring equation (a) and adding it to the square of, we get

role="math" localid="1660978815151" u2+15Ï€²â2=225Ï€cmsinÏ€³æ-15Ï€³Ù2+15π×15.0cmcosÏ€³æ-15Ï€³Ù2u2+15Ï€²â2=225Ï€cm2sin2Ï€³æ-15Ï€³Ù+cos2Ï€³æ-15Ï€³Ùu2+15Ï€²â2=225Ï€cm2

So that, the equation of transverse velocity is given as:

u=225Ï€cm2-15Ï€²â2=15Ï€15cm2-y2....................b

Therefore, using in equation (b), we get,

u=15π15cm2-12cm2=±135πcm/s

As speed cannot be negative-

u=424cm/s=4.24m/s

Hence, the value of transverse speed is 4.24m/s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The amplitudes and phase differences for four pairs of waves of equal wavelengths are (a) 2 mm, 6 mm, and Ï€°ù²¹»å, (b) 3 mm, 5 mm, andrad (c) 7 mm, 9 mm, and (d) 2 mm, 2 mm, and 0 rad. Each pair travels in the same direction along the same string. Without written calculation, rank the four pairs according to the amplitude of their resultant wave, greatest first.

(Hint:Construct phasor diagrams.)

In a demonstration, a 1.2 kghorizontal rope is fixed in place at its two ends (x = 0 and x = 2.0m)and made to oscillate up and down in the fundamental mode, at frequency 5.0 Hz. At t = 0, the point at x = 1.0mhas zero displacement and is moving upward in the positive direction of a yaxis with a transverse velocity of 5.0m/s. What are (a) the amplitude of the motion of that point and (b) the tension in the rope? (c) Write the standing wave equation for the fundamental mode.

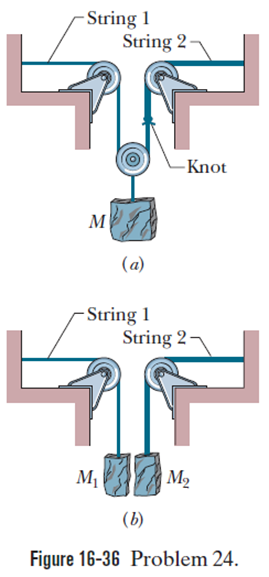

In Figure 16-36 (a), string 1 has a linear density of 3.00 g/m, and string 2 has a linear density of 5.00 g/m. They are under tension due to the hanging block of mass M = 500 g. (a)Calculate the wave speed on string 1 and (b) Calculate the wave speed on string 2. (Hint:When a string loops halfway around a pulley, it pulls on the pulley with a net force that is twice the tension in the string.) Next the block is divided into two blocks (with M1+M2=M) and the apparatus is rearranged as shown in Figure (b). (c) Find M1and (d) Find M2such that the wave speeds in the two strings are equal.

String is stretched between two clamps separated by distance L . String B, with the same linear density and under the same tension as string A, is stretched between two clamps separated by distance 4L. Consider the first eight harmonics of stringB. For which of these eight harmonics of B(if any) does the frequency match the frequency of (a) A’s first harmonic, (b) A’s second harmonic, and (c)A’s third harmonic?

The tension in a wire clamped at both ends is doubled without appreciably changing the wire’s length between the clamps. What is the ratio of the new to the old wave speed for transverse waves traveling along this wire?
