A sinusoidal wave of frequency 500 Hzhas a speed of 350 m/s . (a)How far apart are two points that differ in phase byπ/3rad ? (b)What is the phase difference between two displacements at a certain point at times 1.00 msapart?

Short Answer

Expert verified

a) The length between two points that differ in phase by π3is 117 mm .

b) The phase difference between two displacements at a certain point at times 1.00 ms apart is πrad.

Step by step solution

01

The given data

  • The frequency of the wave,f=500Hz
  • The speed of the wave,v=350m/s
  • The time period of the wave, T=1.00ms
02

Understanding the concept of wave equation

The number of oscillations completed by the wave, per unit time interval is known as frequency. The distance between two consecutive crest or trough gives the wavelength of the wave. The product of wavelength of the wave and the frequency gives us the speed of the propagation of wave.

Formula:

The speed of the wave, v=fλ (i)

The frequency of the wave, f=1T (ii)

03

a) Calculation of the length between two points

Using equation (i), we can find the length of one cycle of the wave as given:

λ=vf=350m/s500s-1=0.7m=700mm

A cycle is equivalent to 2πradso that π3 corresponds to one-sixth of a cycle.

The corresponding length, therefore is,

λ6=700mm6=116.67mm≈117mm

Hence, the value of distance between the two points is 117 mm

04

b) Calculation of phase difference between two displacements

From equation (ii), we can find the time for one cycle of oscillation as given:

T=1f=1500s-1=2.00×10-3s=2.00ms

The interval 1.00 ms is half of T , thus corresponding to half of one cycle. Thus, the phase difference is given by

12×2π=πrad

Hence, the value o the phase difference isπrad .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The following two waves are sent in opposite directions on a horizontal string so as to create a standing wave in a vertical plane:

y1(x,t)=(6.00mm)sin(4.00Ï€x-400Ï€t)y2(x,t)=(6.00mm)sin(4.00Ï€³æ+400Ï€³Ù)

within X meters andin seconds. An antinode is located at point A. In the time interval that point takes to move from maximum upward displacement to maximum downward displacement, how far does each wave move along the string?

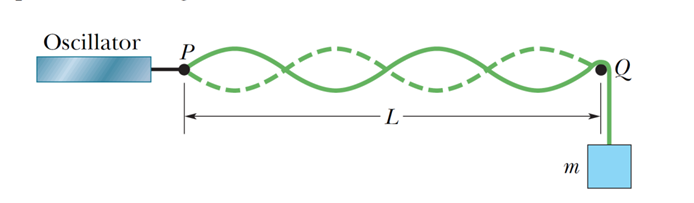

In Fig.16-42, a string, tied to a sinusoidal oscillator at Pand running over a support at Q, is stretched by a block of mass m. Separation L = 1.20 m, linear density, μ=1.6g/mand the oscillator frequency,. The amplitude of the motion at Pis small enough for that point to be considered a node. A node also exists atQ. (a) What mass mallows the oscillator to set up the fourth harmonicon the string? (b) What standing wave mode, if any, can be set up if m = 1.00 kg?
