Two sinusoidal waves, identical except for phase, travel in the same direction along a string, producing the net wavey'(x,t)=(3.0 mm)sin(20x-4.0t+0.820 rad), with x in meters and t in seconds. (a) What is the wavelengthλof the two waves, (b) What is the phase difference between them, and (c) What is their amplitudeym?

Short Answer

Expert verified

a) The wavelength λof the two waves is 0.31 m.

b) The phase difference between the two waves is 1.64 rad.

c) The amplitude of the two waves is 2.2 mm.

Step by step solution

01

The given data

The wave equation is ,y'(x,t)=(3.0mm)sin(20x-4.0t+0.820 rad).

02

Understanding the concept of the wave equation

Comparing the given equation with the general wave equation for two interfered waves, we can get the values of phase difference, amplitude, and wave constant of the net wave. From the wave constant, we can easily find the wavelength of the two waves using corresponding relations.

Formulae:

The wavenumber of the wave,

k=2πλ (i)

The angular frequency of the wave,

Ó¬=2Ï€´Ú (ii)

The velocity of the body in angular motion,

vm=Ó¬ym (iii)

The velocity of the wave,

v=fλ (iv)

Hereym is the amplitude of the wave,f is the frequency of the wave, andλ is the wavelength of the wave.

03

a) Calculation of wavelength

The general equation of an interfering wave is,

y'x,t=2ymcos12ϕsinkx-Ӭt+12ϕ (1)

The given equation of the wave is,

y'(x,t)=(3.0mm)sin(20x-4.0t+0.820rad) (2)

Comparing equations (1) and (2), we get the wavenumber as,

k=20m-1

Using equation (i) and the given values, we get the wavelength as:

λ=23.1420=0.31m

Hence, the value of the wavelength is 0.31 m

04

b) Calculation of phase difference between two waves

Comparing equations (1) and (2), we get the phase difference,

12ϕ=0.820radϕ=1.64rad

Therefore, the phase difference between the two waves is 1.64 rad.

05

c) Calculation of the amplitude

Comparing equations (1) and (2), we get the amplitude of the wave as:

2ymcos12ϕ=3.0mm2ymcos121.64=3.0mm1.36ym=3.0mmym=2.198mm≅2.2mm

Therefore, the amplitude of the two waves is 2.2 mm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Two sinusoidal waves with identical wavelengths and amplitudes travel in opposite directions along a string with a speed of10cm/s. If the time interval between instants when the string is flat is0.50s, what is the wavelength of the waves?

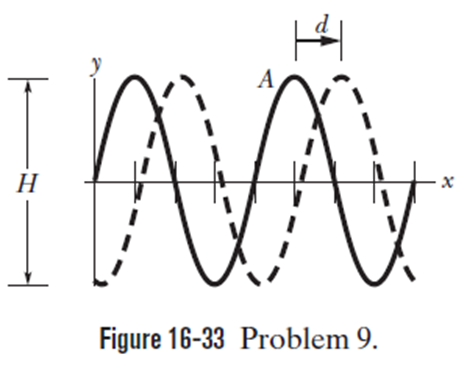

A sinusoidal wave moving along a string is shown twice in Figure 16-33, as crest Atravels in the positive direction of an xaxis by distance d = 6.0 cmin 4.0 ms. The tick marks along the axis are separated by 10 cm ; height H = 6.00mmIf the wave equation is of the form, y(x,t)=ymsin(kx+Ó¬t)

(a) What is ym,

(b) What is k,

(c) What is Ó¬, and

(d) What is the correct choice of sign in front of Ó¬?

The heaviest and lightest strings on a certain violin have linear densities of3.0and0.29 g/m.What is the ratio of the diameter of the heaviest string to that of the lightest string, assuming that the strings are of the same material?

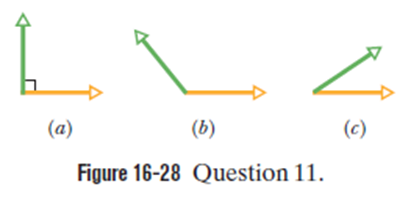

Figure 16-28 shows phasor diagrams for three situations in which two waves travel along the same string. All six waves have the same amplitude. Rank the situations according to the amplitude of the net wave on the string, greatest first.


A sinusoidal wave is sent along a string with a linear density of 2.0 g/m. As it travels, the kinetic energies of the mass elements along the string vary. Figure (a)gives the ratedK/dtat which kinetic energy passes through the string elements at a particular instant, plotted as a function of distance x along the string. Figure (b)is similar except that it gives the rate at which kinetic energy passes through a particular mass element (at a particular location), plotted as a function of time t. For both figures, the scale on the vertical (rate) axis is set by Rs = 10 W. What is the amplitude of the wave?
