Magazine Chapter 44: Q20P (page 1364)
There are baryons with spin .Their symbols and quantum numbers for charge and strangeness are as follows:
| q | S | q | S | ||
| -1 | 0 | 0 | -1 | ||
| 0 | 0 | +1 | -1 | ||
| +1 | 0 | -1 | -2 | ||
| +2 | 0 | 0 | -2 | ||
| -1 | -1 | -1 | -3 |
Make a charge鈥搒trangeness plot for these baryons, using the sloping coordinate system of Fig. 44-3. Compare your plot with this figure.
Short Answer

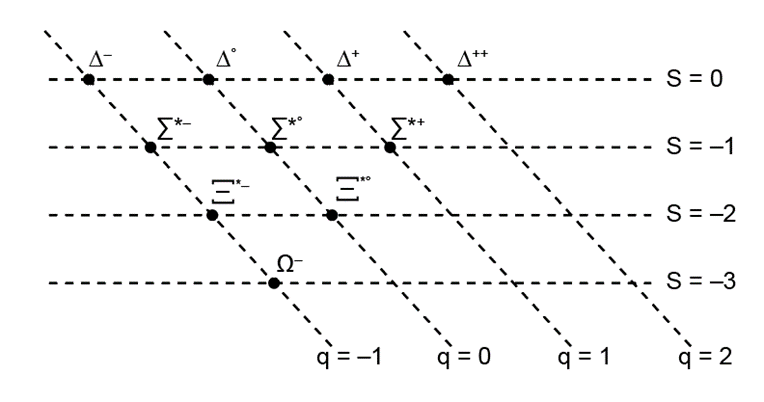

The plot is as follows
The plot is in the shape of a triangle instead of an octagon and is called the ten-fold way.
Step by step solution
Given data
The charge and strangeness of all the spin baryons are provided
Determine the charge-strangeness plot
The charge-strangeness plots of the spin baryons and the spin mesons are as follows:
Figure 1
Figure 2
Determine the charge-strangeness plot of spin 32 baryons
Figure 2. In this case there will be four strangeness axes instead of three with values The charge-strangeness plot of spin baryons can be drawn following Figure 1 and and also four charge axes with values . The resulting plot is as follows:
This is in the shape of a triangle instead of an octagon and is called the ten-fold way.
