A5.00kg object on a horizontal frictionless surface is attached to a spring withk=1000N/m. The object is displaced from equilibrium50.0cmhorizontally and given an initial velocity of10.0m/sback toward the equilibrium position.

(a) What is the motion’s frequency?

(b) What is the initial potential energy of the block–spring system?

(c) What is the initial kinetic energy of the block–spring system?

(d) What is the motion’s amplitude?

Short Answer

Expert verified

(a) Frequency of motion is2.25Hz.

(b) Initial potential energy of block spring system is125J.

(c) Initial kinetic energy is250J .

(d) The amplitude of the motion isrole="math" localid="1655092952658" 0.866m.

Step by step solution

01

The given data

  1. Mass of spring,m=5.00kg
  2. Spring constant,k=1000N/m
  3. Amplitude of the motion,x0=0.50m
  4. Initial velocity of the motion,v=10.0m/s
02

Understanding the concept of simple harmonic motion

Using the given information and the standard formula for frequency, potential energy, and kinetic energy of SHM, we can find the required quantities. Using the law of conservation of mechanical energy, we can find the amplitude.

Formulae:Thefrequencyofthebodyinoscillation,f=12Ï€km........(i)Thepotentialenergyofthebody,U=12kx2.........(ii)Thekineticenergyofthebody,K=12mv2.......(iii)Thetotalenergyofthesystem,E=KE+PE......(iv)

03

(a) Calculation of frequency of oscillation

Using equation (i) and the given values, the frequency of motion is given by:

f=12(3.14)10005.0=2.25HzHence,thevalueofmotion’sfrequencyis2.25Hz.

04

(b) Calculation of initial potential energy

Using equation (ii) and the given values, we get the potential energy as:

U=12×1000×0.502=125JHence,thevalueofinitialpotentialenergyis125J.

05

(c) Calculation of initial kinetic energy

Using equation (iii) and the given values, we get the kinetic energy as:

K=12×5.0×(10)2 =250JHence,thevalueofinitialkineticenergyis250J.

06

(d) Calculation of motion’s amplitude

Using equation (iv) and the derived values, we get the total energy as:

E=125+250=375JAgain,usingequation(ii)andthegivenvalues,wecangetthemaximumamplitudeofthesystemasfollows:375=12×1000×xm2xm2=0.75xm=0.866mHence,thevalueofamplitudeofthemotionis0.866m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Two particles execute simple harmonic motion of the same amplitude and frequency along close parallel lines. They pass each other moving in opposite directions each time their displacement is half their amplitude. What is their phase difference?

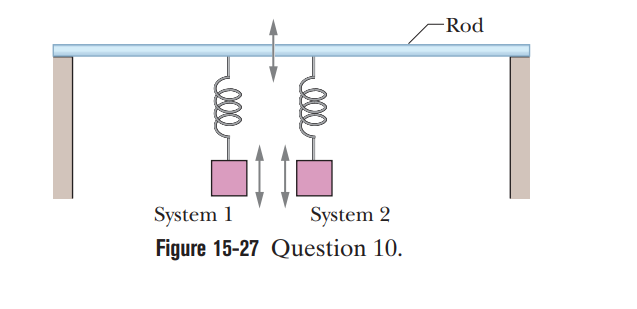

You are to build the oscillation transfer device shown in Fig.15-27. It consists of two spring–block systems hanging from a flexible rod. When the spring of system is stretched and then released, the resulting SHM of system at frequency oscillates the rod. The rod then exerts a driving force on system 2, at the same frequency f1. You can choose from four springs with spring constants k of 1600,1500,1400, and 1200 N/m, and four blocks with masses m of 800,500,400, and 200 kg. Mentally determine which spring should go with which block in each of the two systems to maximize the amplitude of oscillations in system 2.

Question: A thin uniform rod (mass m =0.50 kg) swings about an axis that passes through one end of the rod and is perpendicular to the plane of the swing. The rod swings with a period of1.5 sand an angular amplitude of 100.

  1. What is the length of the rod?
  2. What is the maximum kinetic energy of the rod as it swings?

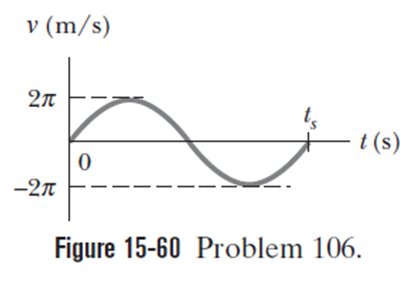

A simple harmonic oscillator consists of a block attached to a spring with k=200 N/m. The block slides on a frictionless surface, with an equilibrium point x=0and amplitude 0.20 m. A graph of the block’s velocity v as a function of time t is shown in Fig. 15-60. The horizontal scale is set byts=0.20s. What are (a) the period of the SHM, (b) the block’s mass, (c) its displacement att=0, (d) its acceleration att=0.10s, and (e) its maximum kinetic energy.

A 4.00kgblock hangs from a spring, extending it 16.0 cmfrom its unstretched position.

  1. What is the spring constant?
  2. The block is removed, and a0.500kgbody is hung from the same spring. If the spring is then stretched and released, what is its period of oscillation?
