An oscillating block–spring system has a mechanical energy of 1.00 J, amplitude of 1.00 cm, and a maximum speed of 1.20 m/ s.

  1. Find the spring constant.
  2. Find the mass of the block.
  3. Find the frequency of oscillation.

Short Answer

Expert verified
  1. The spring constant is 200 N / m
  2. The mass of the block is 1.39 Kg.
  3. The frequency of oscillation of block is 1.91 Hz

Step by step solution

01

The given data

  1. The amplitude of motion,Xm=10.0cmor0.10m..
  2. The maximum speed of block,vm=1.20m/s.
  3. The mechanical energy of system, E = 1.0 J.
02

Understanding the concept of Simple harmonic motion

We can find the spring constant and the mass of the block using the law of conservation of energy. Then we can find the frequency of oscillation of the block by using the formula for the frequency of SHM.

Formulae:

The elastic potential energy of the systemP.E=12kx2,………(1)

The kinetic energy of the system K.E=12mv2......(2)

The law of conservation of energy gives .........(3)

The frequency of oscillation for SHMf=12ττkm..........(4)

03

(a) Calculation of spring constant

From equation (iii), we can say that the mechanical energy of system is equal to the maximum elastic P.E energy of system. Hence, the total energy of the system is given as:

E=12kxm2(∵fromequation(1))K=2Exm2=2(1)(0.10)2=200N/m

Therefore, the spring constant is 200 N / s.

04

(b) Calculation of the mass of the block

Similarly, from equation (iii), we can say that the mechanical energy of system = the maximum elastic K.E energy of system. Hence, the total energy of the system is given as:

E=12mvm2(∵fromequation(2))m=2Evm2=2(1)1.22=1.39Kg

Therefore, the mass of the block is 1.39 Kg.

05

(c) Calculation of the frequency of oscillation

The frequency of oscillation of block using equation (iii)and the given values is given as:

f=12ττ2001.39=1.91Hz

Therefore, the frequency of oscillation of the block is 1.91Hz

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: A0.12 kgbody undergoes simple harmonic motion of amplitude 8.5 cmand period20 s.

  1. What is the magnitude of the maximum force acting on it?
  2. If the oscillations are produced by a spring, what is the spring constant?

When a 20 Ncan is hung from the bottom of a vertical spring, it causes the spring to stretch 20 cm .

  1. What is the spring constant?
  2. This spring is now placed horizontally on a frictionless table. One end of it is held fixed, and the other end is attached to a 5.0 Ncan. The can is then moved (stretching the spring) and released from rest. What is the period of the resulting oscillation?

A 2.0 kg block is attached to the end of a spring with a spring constant of 350 N/m and forced to oscillate by an applied force F(15N)sin(Ó¬dt), where Ó¬d=35rad/s. The damping constant is b=15kg/s.Att=0, the block is at rest with the spring at its rest length. (a) Use numerical integration to plot the displacement of the block for the first 1.0 s. Use the motion near the end of the 1.0 sinterval to estimate the amplitude, period, and angular frequency. Repeat the calculation for (b)Ó¬d=KMand (c)Ó¬d=20rad/s.

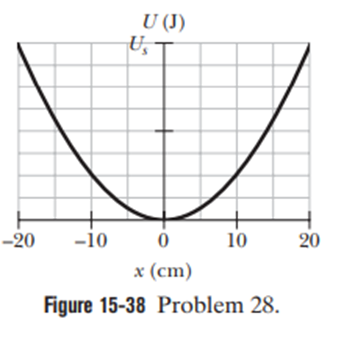

Figure 15-38 gives the one-dimensional potential energy well for a 2.0 Kgparticle (the function U ( x )has the formbx2and the vertical axis scale is set byUs=2.0J).
