• The spring constant is, k=3.0 N/m
• The displacement of the spring is, $x_m=0.250m$

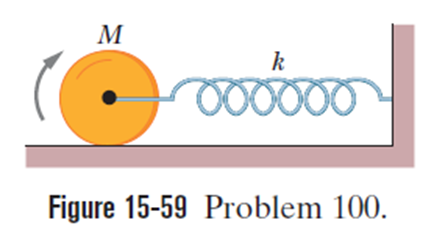

• The solid cylinder rolls on the horizontal surface without slipping.

The energy of a body by virtue of its translational motion, is known as Translational kinetic energy and the energy of the body due to its rotational motion is called rotational kinetic energy. The law of conservation of energy states that the maximum potential energy of the body should be equal to the maximum value of the sum of translational and rotational kinetic energy. Then using the condition for total energy to be constant, we can find the given expression for the period of SHM executed by the cylinder鈥檚 center of mass.

Formulae:

The translational kinetic energy of the system, $K_T=\frac{1}{2}M{v}^2$ (i)

Here, M is mass, v is velocity of the object.

Rotational kinetic energy of the system, $K_R=\frac{1}{2}l{w}^2$ (ii)

Here, l is rotational inertia, $蝇$is angular velocity.

Moment of inertia of cylinder through its center and perpendicular to its plane,

$l=\frac{1}{2}M{R}^2$ (iii)

Here, l is the rotational inertia, M is mass, R is the radius of the cylinder.

The period of oscillation for SHM,

$T=2蟿蟿\sqrt{\frac{M}{k}}$ (iv)

Here, T is the time period, M is mass, k is the force constant.

The angular speed of the system, $蝇=\frac{v}{R}$ (v)

Here, v is the velocity of the object, $蝇$is angular velocity and R is the radius of the cylinder.

According to the law of conservation of energy, total energy content of the cylinder (E) is constant . So, for the center of mass(cm) , we get the equation-

$$\begin{gathered} \frac{1}{2}k{x}_m^2=\frac{1}{2}M{v}_{cm}^2+\frac{1}{2}{l}_{cm}{蝇}^2 \\ \frac{1}{2}k{x}_m^2=\frac{1}{2}M{v}_{cm}^2+\frac{1}{2}\left(\frac{1}{2}M{R}^2\right){蝇}^2 \\ \frac{1}{2}k{x}_m^2=\frac{1}{2}M{v}_{cm}^2+\frac{1}{4}M{v}_{cm}^2 \\ \frac{1}{2}k{x}_m^2=\frac{3}{4}M{v}_{cm}^2 \end{gathered}$$

On further solving

$$\begin{gathered} {\mathrm{Mv}}^2=\frac{2}{3}{\mathrm{kx}}_{\mathrm{m}}^2 \\ =\frac{2}{3}\left(3\mathrm{N}/\mathrm{m}\right){\left(0.25\mathrm{m}\right)}^2 \\ =0.125\mathrm{J} \end{gathered}$$

Therefore, the translational K.E of the cylinder as it passes through the equilibrium position from equation (i) is given as:

$$\begin{gathered} \mathrm{K}.{\mathrm{E}}_{.\mathrm{trans}}=\frac{1}{2}{\mathrm{Mv}}^2 \\ =\frac{1}{2}脳0.125\mathrm{J} \\ =0.0625\mathrm{J} \end{gathered}$$

Hence, the value of translational K.E. is 0.0625 J.

From part (a), in the derivational it can be seen that the value of rotational energy is given as:

$$\begin{gathered} \frac{1}{2}{\mathrm{l}}_{\mathrm{cm}}{\mathrm{蝇}}^2=\frac{1}{4}{\mathrm{Mv}}_{\mathrm{cm}}^2 \\ =\frac{1}{4}\left(0.125\right) \\ =3.13脳{10}^{-2}\mathrm{J} \end{gathered}$$

Therefore, the rotational K.E of the cylinder as it passes through the equilibrium position is $3.13脳{10}^{-2}\mathrm{J}$.

According to the law of energy conservation,

Hence, the acceleration of the center of mass is given as:

$$\begin{gathered} \frac{dE}{dt}=0 \\ \frac{d}{dt}\left(\frac{1}{2}k{x}^2-\frac{3}{4}M{v}^2\right)=0(frompart(a\left)\right) \\ -\frac{3}{2}M{v}_{cm}{a}_{cm}+kx{v}_{cm}=0 \\ {a}_{cm}=\left(\frac{2k}{3M}\right)x \end{gathered}$$

The period of oscillation for SHM using equation (iv) and the value of acceleration with being L=x is given as:

$T=2蟿蟿\sqrt{\frac{3M}{2k}}$

Therefore, the period of the SHM executes by cylinder鈥檚 center of mass is,

$T=2蟿蟿\sqrt{\frac{3M}{2k}}$
