A spider can tell when its web has captured, say, a fly because the fly’s thrashing causes the web threads to oscillate. A spider can even determine the size of the fly by the frequency of the oscillations. Assume that a fly oscillates on the capture thread on which it is caught like a block on a spring. What is the ratio of oscillation frequency for a fly with mass mto a fly with mass2.5m?

Short Answer

Expert verified

The ratio of oscillation frequency for a fly with mass m to a fly with mass 2.5 m is1.58.

Step by step solution

01

The given data

One fly has a mass of m and the other fly has a mass of 2.5m.

02

Understanding the concept of SHM

The period T is the time required for one complete oscillation or cycle. It is related to the frequency by,

T=1f

It is also related to mass (m) and force constant (k) by the formula,

T=2Ï€mk

The angular frequencyis related to the period and frequency of the motion by,

Ó¬=2Ï€T=2Ï€f=km

Using the formula for the period of SHM, we can write the ratio of oscillation frequency for a fly with a mass ofm to a fly with a mass of 2.5m.

Formula:

The angular frequency of SHM, Ó¬=km (i)

03

Calculation of the required ratio of frequencies

Since the spider is the same in both cases, the spring constant k of its web is the same. The fly has two different masses for the respective cases. Then, the ratio of oscillation frequency for the fly with mass m to mass 2.5m using equation (i) can be given as:

Ó¬1Ó¬2=km1km2=m2m1=2.5mm=2.5=1.58

Therefore, the ratio of oscillation frequency for a fly with mass m to a fly with mass 2.5m is 1.58.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

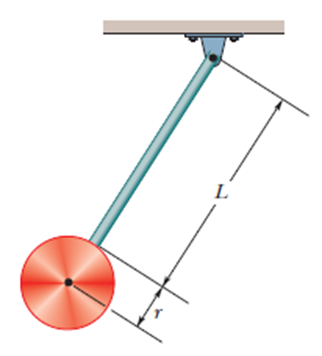

Question: In Figure, the pendulum consists of a uniform disk with radius r = 10.cmand mass 500 gm attached to a uniform rod with length L =500mm and mass 270gm.

  1. Calculate the rotational inertia of the pendulum about the pivot point.
  2. What is the distance between the pivot point and the center of mass of the pendulum?
  3. Calculate the period of oscillation.

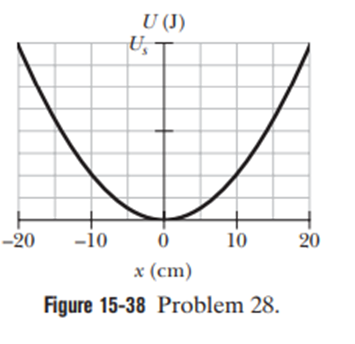

Figure 15-38 gives the one-dimensional potential energy well for a 2.0 Kgparticle (the function U ( x )has the formbx2and the vertical axis scale is set byUs=2.0J).

  1. If the particle passes through the equilibrium position with a velocity of, 85 cm / s will it be turned back before it reaches x = 15 cm?
  2. If yes, at what position, and if no, what is the speed of the particle at x = 15cm?

A block sliding on a horizontal frictionless surface is attached to a horizontal spring with a spring constant of 600N/m. The block executes SHM about its equilibrium position with a period of0.40sand an amplitude of0.20m. As the block slides through its equilibrium position, a role="math" localid="1657256547962" 0.50kgputty wad is dropped vertically onto the block. If the putty wad sticks to the block, determine (a) the new period of the motion and (b) the new amplitude of the motion.

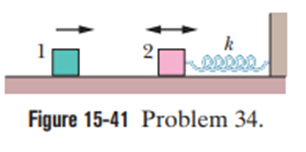

In Figure 15-41, block 2 of massoscillates on the end of a spring in SHM with a period of20ms.The block’s position is given byx=(1.0cm)cos(Ӭt+π/2)Block 1 of mass4.0kgslides toward block 2with a velocity of magnitude6.0m/s, directed along the spring’s length. The two blocks undergo a completely inelastic collision at timet=5.0ms. (The duration of the collision is much less than the period of motion.) What is the amplitude of the SHM after the collision?

A (hypothetical) large slingshot is stretched 2.30 to launch a 170g projectile with speed sufficient to escape from Earth (11.2km/s). Assume the elastic bands of the slingshot obey Hooke’s law. (a) What is the spring constant of the device if all the elastic potential energy is converted to kinetic energy? (b) Assume that an average person can exert a force of 490 N. How many people are required to stretch the elastic bands?
