A massless spring hangs from the ceiling with a small object attached to its lower end. The object is initially held at rest in a position yisuch that the spring is at its rest length. The object is then released from yiand oscillates up and down, with its lowest position being 10cmbelowyi

(a) What is the frequency of the oscillation?

(b) What is the speed of the object when it is 8.0cmbelow the initial position?

(c) An object of mass 300gis attached to the first object, after which the system oscillates with half the original frequency. What is the mass of the first object?

(d) How far below yiis the new equilibrium (rest) position with both objects attached to the spring?

Short Answer

Expert verified

a) Frequency of oscillation is 2.23Hz.

b) Speed of object when it is 8.0 cm below the initial position is0.56m/s

c) Mass of original object, after addition of 300 g mass is0.100kg.

d) It is at0.200mbelow the equilibrium position.

Step by step solution

01

The given data

The given distance is twice the amplitude sox=0.05m

02

Understanding the concept of simple harmonic motion

Using the concepts of SHM and conditions given inthe problem, we can find all theanswers step by step. We can use the formula for frequency in terms of force constant and mass. To find velocity, we can use the law of conservation of energy. Using the new condition for mass, we can write the equations for frequency and compare it with the original equation for frequency to find the new frequency.

Formula:

Force acting on a body due to its weight,F=mg.(i)

Force on a spring,F=Kx(ii)

Frequency of oscillation,role="math" localid="1655099698569" f=12km(iii)

Potential energy of a body,PE=12kx2..(iv)

Kinetic energy of a body,KE=12mv2..(v)

03

(a) Calculation of frequency of oscillation

From equations (i) & (ii), we get

mg=kx9.8m=0.05kkm=196

Now, using equation (iii) and the above value, we can get the frequency as:

f=123.14196=2.23Hz

Hence, the value of frequency is2.23Hz

04

(b) Calculation of the speed of the object

Using equation (iv), we can get the potential energy as:

PE1=12k0.052=k1.2510-3

Now, potential energy at the position below 8 cm can be given as:

For this, the amplitude is 0.08m-0.05m=0.03m

So, the potential energy at that position

PE2=12k0.032=k4.510-4=k4.510-3

Now, potential energy difference in both positions is given as:

PE=PE1-PE2=0.810-3k

We know that energy is conserved during motion.

So we can write that the kinetic energy of a body is equal to that of the potential energy difference of that system. Hence, using equations (iv) & (v) and from potential energy equation, we get

0.810-3k=12mv2v2=1.610-3km=1.610-3196v=0.56m/s

Hence, the speed of the object is0.56m/s

05

(c) Calculation of mass of first object

As for the condition in the given data that the system frequency is half that of the original frequency of the system with only mass m, we can say that

12km+m=1212kmkm+m=14kmm+m=4mm=0.100kg

Hence, the mass of the first object is 0.100kg0.100kg

06

(d) Calculation of the new equilibrium position

If both mass are attached to object, the mass of system becomes 0.4 kg, which is 4 times the original one.

Again, by comparing equations (i) & (ii), we get

mg=kx

Where g andk are constant

If we compare these masses, we can find the new equilibrium position

0.1g0.4g=0.5kkx=0.200m

So, new equilibrium is at0.2mdistance.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

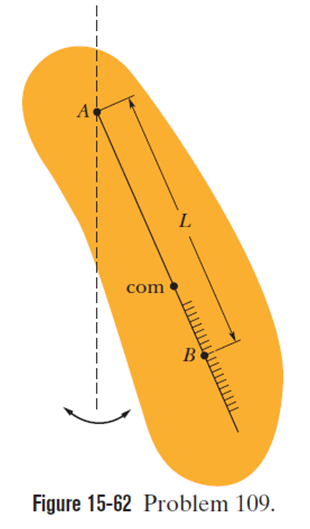

The physical pendulum in Fig. 15-62 has two possible pivot points A and B. Point A has a fixed position but B is adjustable along the length of the pendulum as indicated by the scaling. When suspended from A, the pendulum has a period ofT=1.80s. The pendulum is then suspended from B, which is moved until the pendulum again has that period. What is the distance L between A and B?

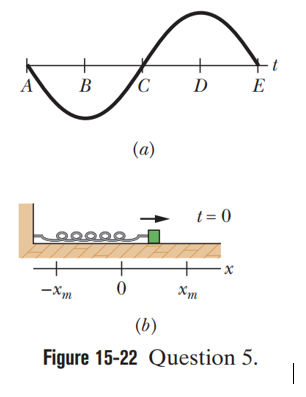

You are to complete Figure 15-22a so that it is a plot of velocity v versus time t for the spring鈥揵lock oscillator that is shown in Figure 15-22b for t=0. (a) In Fig.15-22a, at which lettered point or in what region between the points should the (vertical) v axis intersect the t axis? (For example, should it intersect at point A, or maybe in the region between points A and B?) (b) If the block鈥檚 velocity is given byv=-vmsin(t+), what is the value of? Make it positive, and if you cannot specify the value (such as+/2rad), then give a range of values (such as between 0 and/2rad).
