In three situations, a single force acts on a moving particle. Here are the velocities (at that instant) and the forces: (1) v鈬赌=(-4i)m/s,f=(6i-20)N:(2) v=(-3i+j)m/s,f鈬赌=(2i+6j)N(3) v鈬赌=(-3i+j)m/s,f鈬赌=(2i+6j)N. Rank the situations according to the rate at which energy is being transferred, greatest transfer to the particle ranked first, greatest transfer from the particle ranked last.

Short Answer

Expert verified

The rank of the situations according to the rate at which energy is being transferred is 2 > 3 > 1.

Step by step solution

01

The given data

The three situations are:

v鈬赌=-4i&F=6i-20jv鈬赌=2i-3j&F=-2j+7kv鈬赌=-3i+j&F=2i+6j

02

Understanding the concept of the rate of the energy transfer

Using the formula for power, i.e., rate of work done per unit time, we can rank the situations. So, using the formula of work in power, we can get the exact value of all the given situations.

Formulae:

The rate of energy transfer or work done of a body,P=Wt (i)

The net energy transfer is equal to the work done by a body,W=F.d (ii)

03

Calculation of the rank according to the rate of the energy transfer

We know that the power is the rate of energy transfer and is given using equation (ii) in equation (i) as follows:

P=F.dt=F.v..............a

So for case 1,

v鈬赌=-4i&F=6i-20j

So, the value of the power is given using the given values equation (a) as:

P1=-4i6i-20j=-24W

For case 2,

role="math" localid="1657171186237" v鈬赌=-2i+3j&F=-2i+7k

So, the value of the power is given using the given values equation (a) as:

P2=2i-3j.-2j+7k=6W

For case 3,

v鈬赌=-3i+j&F=2i+6j

So, the value of the power is given using the given values equation (a) as:

P3=3i+j.2i+6j=0W

So, the rank of the situations according to the rate of energy is 2 > 3 > 1.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A constant force of magnitude 10 N makes an angle of 150(measured counterclockwise) with the positive x direction as it acts on a 2.0 kg object moving in an xy plane. How much work is done on the object by the force as the object moves from the origin to the point having position vector (2.0m)i^(4.0m)j^?

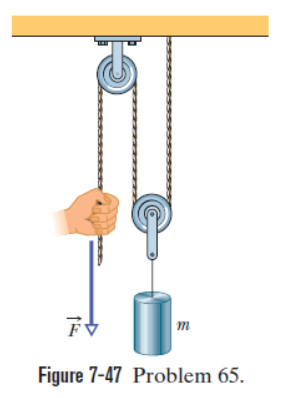

In Fig.7-47 , a cord runs around two massless, frictionless pulleys. A canister with mass m 20 kg hangs from one pulley, and you exert a force Fon the free end of the cord. (a) What must be the magnitude ofF if you are to lift the canister at a constant speed? (b) To lift the canister by 2.0 cm , how far must you pull the free end of the cord? During that lift, what is the work done on the canister by (c) your force (via the cord) and (d) the gravitational force? (Hint: When a cord loops around a pulley as shown, it pulls on the pulley with a net force that is twice the tension in the cord.)

To pull a 50 kgcrate across a horizontal frictionless floor, a worker applies a force of 210 N, directed20above the horizontal. As the crate moves 3.0 m, what work is done on the crate by (a) the worker鈥檚 force, (b) the gravitational force, and (c) the normal force? (d) What is the total work?

Boxes are transported from one location to another in a warehouse by means of a conveyor belt that moves with a constant speed of 0.50 m/s. At a certain location the conveyor belt moves for 2.0 m up an incline that makes an angle of 10with the horizontal, then for 2.0 m horizontally, and finally for 2.0 m down an incline that makes an angle of 10ith the horizontal. Assume that a 2.0 kg box rides on the belt without slipping. At what rate is the force of the conveyor belt doing work on the box as the box moves (a) up the 10incline, (b) horizontally, and (c) down the 10incline?

A spring with a spring constant of 180N/cmhas a cage attached to its free end. (a) How much work does the spring force do on the cage when the spring is stretched from its relaxed length by7.60mm? (b) How much additional work is done by the spring force when the spring is stretched by an additional7.60mm ?
