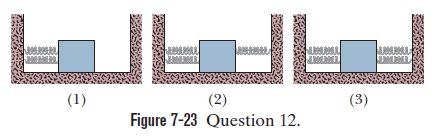

Figure shows the three arrangements of a block attached to identical springs is shown.

Using the concept of the net force acting on a body attached to the spring, we can calculate the value of the ranks of the blocks' positions according to their forces for three identical springs.

Formulae:

The force acting on the block due to attached spring,

$\mathrm{F}=-\mathrm{k}.\mathrm{x}$ (i)

The work done due to an applied force,

$W=F.d$ (ii)

a)

When the spring is displaced by x in horizontal direction, then the spring force is given by equation (i).

For situation 1:

Here, two identical springs are attached in the system, so the net force is given using equation (i) as:

$$\begin{gathered} {\mathrm{F}}_{1\mathrm{net}}={\mathrm{F}}_{\mathrm{s}1}+{\mathrm{F}}_{\mathrm{s}1} \\ =2{\mathrm{F}}_{\mathrm{s}1} \\ =-2\mathrm{k}.\mathrm{x} \end{gathered}$$

For situation 2:

Here, three identical springs are attached in the system, so the net force is given using equation (i) as follows:

$$\begin{gathered} {\mathrm{F}}_{3\mathrm{net}}={\mathrm{F}}_{\mathrm{s}1}+{\mathrm{F}}_{\mathrm{s}1}+{\mathrm{F}}_{\mathrm{s}1} \\ =3{\mathrm{F}}_{\mathrm{s}1} \\ =-3\mathrm{k}.\mathrm{x} \end{gathered}$$

For situation 3:

Here, four identical springs are attached in the system, so the net force is given using equation (i) as:

$$\begin{gathered} {\mathrm{F}}_{1\mathrm{net}}={\mathrm{F}}_{\mathrm{s}1}+{\mathrm{F}}_{\mathrm{s}1}={\mathrm{F}}_{\mathrm{s}1} \\ =4{\mathrm{F}}_{\mathrm{s}1} \\ =-4\mathrm{k}.\mathrm{x} \end{gathered}$$

So, the rank for magnitude for force for both the directions is 3 > 2 > 1

Hence, the rank when block is displaced by the right is 3 > 2 > 1.

b)

From the calculations of part (a), we get that the rank is similar to both the directions.

Hence, the rank when block is displaced by the left is 3 . 2 > 1.

c)

Work is done due to spring force. As displacement is the same for all cases, rank of the work is the same as the rank for spring force using equation (ii).

So, rank for the work done for both the directions is 3 > 2 > 1

Hence, the rank when block is displaced to the right is 3 > 2 > 1 .

d)

From the above calculations of part (c), we get that the rank for both the directions is same.

Hence, the rank when block is displaced to the left is 3 > 2 > 1.
