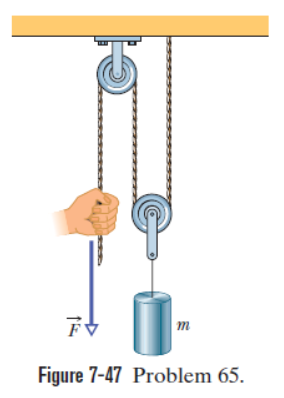

It is given that,

Mass of the canister is$m=20\mathrm{kg}$

The canister is lifted by the distance

$$\begin{gathered} d=2.0\mathrm{cm} \\ =0.02\mathrm{m} \end{gathered}$$

The problem is based on Newton’s second law of motion which states that the rate of change of momentum of a body is equal in both magnitude and direction of the force acting on it. Also it deals with the work done which is the displacement of an object when force is applied on it. Find the magnitude of by applying Newton’s second law to the system. From the free body diagram, find the answer for part b. Then using the formula for work done, find the work done on the canister by the force applied via cord and by gravitational force.

Formulae:

$$\begin{gathered} F_{net}=ma \\ W=\stackrel{→}{F},\stackrel{→}{d} \end{gathered}$$

Where,

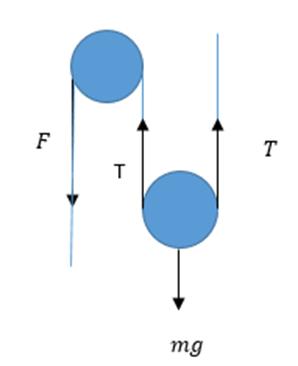

Free body diagram:

The canister is moving with a constant speed, meaning the acceleration of the system is zero. It implies that the system is at equilibrium. Hence, Newton’s second law gives,

$F_{net}=0$

From above free body diagram,

$2T=mg$

And,

$F=T$

So,

role="math" localid="1657174594280" $$\begin{gathered} F=\frac{mg}{2} \\ =\frac{20\left(9.8\right)}{2} \\ F=98\mathrm{N} \end{gathered}$$

Therefore, the magnitude of$\stackrel{→}{F}$ if the canister is lifted with a constant speed is 98 N

If the canister is lifted by 2.0 cm , the two cord segments will be shortened by the same amount. Therefore, the net distance through which the cord is pulled is 4.0 cm.

Now,$W=\stackrel{→}{F}.\stackrel{→}{d}$,

Since both $\stackrel{→}{F}$ and d are in the downward direction, the work done by $\stackrel{→}{F}$is,

$$\begin{gathered} W=F.d \\ W=\left(98\right)\left(0.04\right) \\ =3.9\mathrm{J} \end{gathered}$$

Therefore, the work done on the canister by the force applied via cord is $3.9\mathrm{J}$.

Now,$W=\stackrel{→}{F}.\stackrel{→}{d}$,

Since the gravitational force$\stackrel{→}{F_g}$ is in downward direction and$\stackrel{→}{d}$ is in upward direction, the work done by the gravitational force is,

$$\begin{gathered} W=-F_g{d}_c \\ =-\left(20\right)\left(9.8\right)\left(0.020\right) \\ W=-3.9\mathrm{J} \end{gathered}$$

Therefore, the work done on the canister by the gravitational force is$-3.9\mathrm{J}$.
