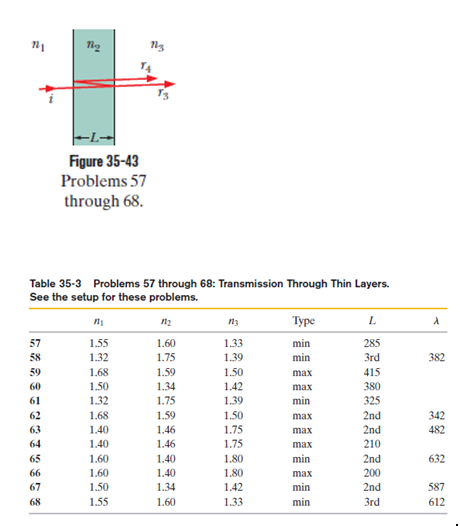

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as rayr3(the light does not reflect inside material 2) andr4(the light reflects twice inside material 2). The waves ofr3and r4interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1,n2and n3the type of interference, the thin-layer thickness Lin nanometers, and the wavelength λin nanometers of the light as measured in air. Whereλis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

Short Answer

Expert verified

The thickness of the thin layer is 248nm.

Step by step solution

01

Given Data.

  • The refractive index of first medium isn1=1.40.
  • The refractive index of the thin film isn2=1.86.
  • The refractive index of the third medium is n3=1.75.
  • The maximum intensity occurs at λmax=482nm.
02

Interference of light through thin films:

Light that is incident normally on thin films is reflected from both the front and back surfaces, causing interference of the reflected light. When constructive interference happens, it produces bright reflected light, and when entirely destructive interference occurs, it produces a dark region.

03

Estimate the wavelength:

The interference of the transmitted rays is similar to the interference of the reflection of light. Here in this case, as n1<n2and n2<n3the two transmitted rays have 180∘phase angle difference. Therefore, the condition for constructive interference is

2L=m+12λmaxn2L=2m+1λmax4n2

The 2nd least thickness means order number m=1for which the thickness is

L=21+1482nm41.46=248nm

Hence, the thickness of the thin layer is 248nm.
