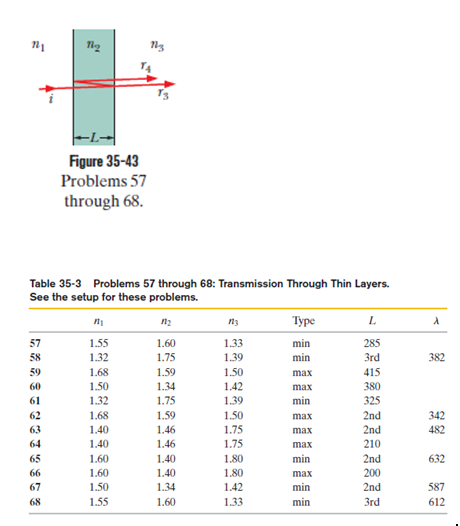

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as ray r3(the light does not reflect inside material 2) and r4(the light reflects twice inside material 2). The waves of r3and r4interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1,n2and n3the type of interference, the thin-layer thickness Lin nanometers, and the wavelength λin nanometers of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. Where L is missing, give the second least thickness or the third least thickness as indicated.

Short Answer

Expert verified

The thickness of the thin layer is 161nm.

Step by step solution

01

Given Data.

  • The refractive index of first medium is n1=1.68.
  • The refractive index of the thin film is n2=1.59.
  • The refractive index of the third medium is n3=1.50.
  • The maximum intensity occurs at λmax=342nm.
02

Interference of light through thin films:

Light that is incident normally on thin films is reflected from both the front and back surfaces, causing interference of the reflected light. When constructive interference happens, it produces bright reflected light, and when entirely destructive interference occurs, it produces a dark region.

03

Define the wavelength:

The interference of the transmitted rays is similar to the interference of the reflection of light. Here in this case, as n1>n2and n2>n3 the two transmitted rays have 180∘phase angle difference.

Therefore, the condition for constructive interference is,

role="math" localid="1663092034628" 2L=m+12λmaxn2L=2m+1λmax4n2

The 2nd least thickness means order number m=1for which the thickness is,

role="math" localid="1663092058636" L=21+1342nm41.59=161nm

Hence, the thickness of the thin layer is 161nm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

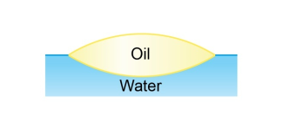

In Fig 35-59, an oil drop (n=1.20) floats on the surface of water (n=1.33) and is viewed from overhead when illuminated by sunlight shinning vertically downward and reflected vertically upward. (a) Are the outer (thinnest) regions of the drop bright or dark? The oil film displays several spectra of colors. (b) Move from the rim inward to the third blue band and using a wavelength of 475 nm for blue light, determine the film thickness there. (c) If the oil thickness increases, why do the colors gradually fade and then disappear?

Three electromagnetic waves travel through a certain point P along an x-axis. They are polarized parallel to a y-axis, with the following variations in their amplitudes. Find their resultant at P.

E1=(10.00μ³Õ/m)sin[2×1014t]E2=(5.00μ³Õ/m)sin[2×1014t+45°]E3=(5.00μ³Õ/m)sin[2×1014t-45°]

The wavelength of yellow sodium light in air is 589 nm. (a) What is its frequency? (b) What is its wavelength in glass whose index of refraction is 1.52? (c) From the results of (a) and (b), find its speed in this glass.

Transmission through thin layers. In Fig. 35-43, light is incident perpendicularly on a thin layer of material 2 that lies between (thicker) materials 1 and 3. (The rays are tilted only for clarity.) Part of the light ends up in material 3 as ray r3(the light does not reflect inside material 2) and r4(the light reflects twice inside material 2). The waves of r3and r4interfere, and here we consider the type of interference to be either maximum (max) or minimum (min). For this situation, each problem in Table 35-3 refers to the indexes of refraction n1,n2and n3the type of interference, the thin-layer thickness Lin nanometers, and the wavelength λin nanometers of the light as measured in air. Where λis missing, give the wavelength that is in the visible range. Where Lis missing, give the second least thickness or the third least thickness as indicated.

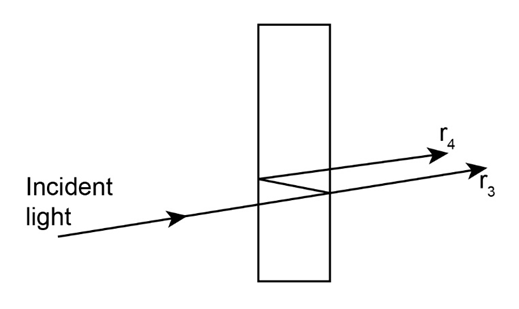

Figure 35-29 shows the transmission of light through a thin film in the air by a perpendicular beam (tilted in the figure for clarity). (a) Did rayr3undergo a phase shift due to reflection? (b) In wavelengths, what is the reflection phase shift for rayr4? (c) If the film thickness is L, what is the path length difference between raysr3andr4?
