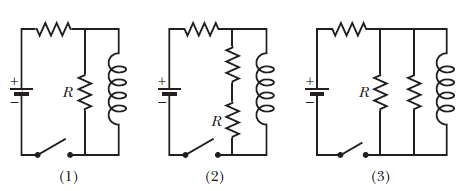

Figure 30-29 shows three circuits with identical batteries, inductors, and resistors. Rank the circuits, greatest first, according to the current through the resistor labeled R (a) long after the switch is closed, (b) just after the switch is reopened a long time later, and (c) long after it is reopened

Short Answer

Expert verified

The ranks of the circuits according to the current through the resistor R,

  1. Long after the switch is closed (1), (2), and (3) all tie(zero).
  2. Just after the switch is reopened a long time later are (1), (2) tie, and then (3).
  3. Long after it is reopened are (1), (2), and (3) all tie(zero).

Step by step solution

01

Given

  1. Fig.30-29.
  2. Three circuits with identical batteries, inductors, and resistors.
02

Determining the concept

Using the properties of resistors in parallel and series, the properties of the inductors and applying to the given Fig.30-29, find the ranks of the circuits according to the current through the resistor R; long after the switch is closed, just after the switch is reopened a long time later, and long after it is reopened.

  1. Formula:

The current through the circuits is,

i=εR

03

(a) Determining the ranks of the circuits according to the current through the resistor R Long after the switch is closed

Long after the switch is closed, then the circuits reach their steady-stateε/R due to the inductor and the inductor starts to act like the conducting wire, that is, its resistance is minimum or zero. So, the current from the battery and its neighboring resistor prefers to pass through the inductor, and hence, the current through the other resistors is zero. This happens similarly in all the given circuits.

Therefore, the ranks of the circuits according to the current through the resistor R are (1), (2), and (3) all tie.

Hence, the ranks of the circuits according to the current through the resistor R. Long after the switch is closed (1), (2), and (3) all tie(zero).

04

(b) Determining the ranks of the circuits according to the current through the resistor R Just after the switch is reopened a long time later, and

Just after reopening the switch, the current start dropping a little bit from the steady-state currentε/R , and in the (1) circuit the inductor is in series with the central resistor. Also, in the (2) circuit the inductor is in series with two central resistors. As they are in series and all the given circuits with identical batteries, inductors, and resistors, the current is the same. But in the (3) circuit, the resistors are in parallel. Therefore, the current through the inductor splits between both resistors. Hence the current through R is less as compared with (1) and (2).

Therefore, the ranks of the circuits according to the current through the resistor R are (1), (2) tie, and (3).

Hence, The ranks of the circuits according to the current through the resistor R. Just after the switch is reopened a long time later are (1), (2) tie, and then (3).

05

(c) Determining the ranks of the circuits according to the current through the resistor R Long after it is reopened

A long time after the reopening, all three circuits are in steady-state with zero current.

Therefore, the ranks of the circuits according to the current through the resistor R are (1), (2), and (3) all tie.

Hence, the ranks of the circuits according to the current through the resistor R. Long after it is reopened are (1), (2), and (3) all tie(zero).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Figure 30-24 shows two circuits in which a conducting bar is slid at the same speed vthrough the same uniform magnetic field and along a U-shaped wire. The parallel lengths of the wire are separated by 2Lin circuit 1 and by Lin circuit 2. The current induced in circuit 1 is counter clockwise. (a) Is the magnetic field into or out of the page? (b) Is the current induced in circuit 2 clockwise or counter clockwise? (c) Is the emf induced in circuit 1 larger than, smaller than, or the same as that in circuit 2?

If the circular conductor in Fig. 30-21 undergoes thermal expansion while it is in a uniform magnetic field, a current is induced clockwise around it. Is the magnetic field directed into or out of the page?

For the wire arrangement in Figure, a=12.0cmandb=16.0cm. The current in the long straight wire isi=4.50t2-10.0t, where i is in amperes and t is in seconds. (a) Find the emf in the square loop at t =3.00s. (b) What is the direction of the induced current in the loop?

The current i through a 4.6 Hinductor varies with time t as shown by the graph of Figure, where the vertical axis scale is set by is=8.0A and the horizontal axis scale is set by ts=6.0ms . The inductor has a resistance of12Ω.(a) Find the magnitude of the induced emf ε during time intervals 0 to 2 ms. (b) Find the magnitude of the induced emf ε during time intervals 2 ms to 5 ms. (c) Find the magnitude of the induced emf εduring time intervals 5 ms to 6 ms. (Ignore the behavior at the ends of the intervals.)

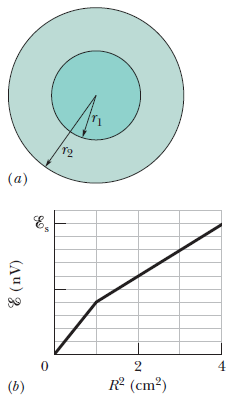

Figure 30-73a shows two concentric circular regions in which uniform magnetic fields can change. Region 1, with radius, has an outward magnetic field that is increasing in magnitude. Region 2, with radius r2=2.0cm, has an outward magnetic field that may also be changing. Imagine that a conducting ring of radius R is centered on the two regions and then the emf around the ring is determined. Figure 30-73b gives emf as a function of the square R2 of the ring’s radius, to the outer edge of region 2. The vertical axis scale is set by Es=20nV. What are the rates (a) dB1dtand (b) dB2dt? (c) Is the magnitude of increasing, decreasing, or remaining constant?
