For the circuit of Figure, assume that ε=10.0V,R=6.70Ω,andL=5.50H. The ideal battery is connected at timet=0. (a) How much energy is delivered by the battery during the first 2.00 s? (b) How much of this energy is stored in the magnetic field of the inductor? (c) How much of this energy is dissipated in the resistor?

Short Answer

Expert verified

a) The energy delivered by the battery during the first 2.00s is 18.7 J

b) The energy stored in the magnetic field of the inductor is 5.10 J

c) The energy dissipated in the resistor is 13.6 J

Step by step solution

01

Given

i) Emf of battery V = 10.0 V

ii) Resistance R = 6.70Ω

iii) Inductance L = 5.50 H

02

Understanding the concept

We need to use the formula of the energy delivered by the battery to find energy delivered by the battery during the first. Then, using the formula of the energy stored in the inductors magnetic field, we can find theenergy stored in the magnetic field of the inductor. Using these values, we can find the energy dissipated in the resistor considering theconservation of total energy.

Formula:

E=∫0tPdtP=V2R1-eRtLUB=12Li2i=VR1-eRtL

03

(a) The energy delivered by the battery during the first 2.00 s

The energy delivered by the battery is given by

E=∫0tPdtBut,P=V2R1-eRtLTherefore,E=∫0tV2R1-eRtLdtE=V2R∫0tdt-∫0teRtLdtE=V2Rt+LReRtL-1E=10.0V26.70Ω2.00s+5.50H6.70Ωe6.70Ω2.00s5.50H-1E=18.7J

Therefore, the energy delivered by the battery during the first 2.00 s is 18.7 J.

04

(b) Calculate The energy stored in the magnetic field of the inductor

The energy stored in the magnetic field of the inductor is given by

UB=12Li2

But,

i=VR1-eRtLTherefore,UB=12LVR1-eRtL2UB=12LVR21-21eRtL2UB=125.50H10.0V6.70Ω21-21e6.70Ω2.00s5.50H+e6.70Ω2.00s5.50H2UB=5.10J

Therefore, the energy stored in the magnetic field of the inductor is5.10 J.

05

(c) Calculate the energy dissipated in the resistor

Energy delivered by the battery during the first 2.00 s is 18.7 J and energy stored in the magnetic field of the inductor is 5.10 J

Therefore, the amount of energy dissipated in the resistor is

E = 18.7 J-5.10 J = 13.6 J

Therefore, the energy dissipated in the resistor is 13.6 J.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A loop antenna of area2.00cm2and resistance 5.21 mis perpendicular to a uniform magnetic field of magnitude 17.0 mT. The field magnitude drops to zero in 2.96 ms. How much thermal energy is produced in the loop by the change in field?

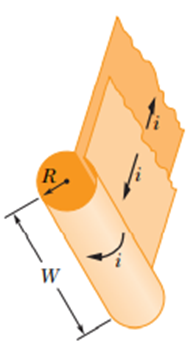

Figure shows a copper strip of width W = 16.0 cmthat has been bent to form a shape that consists of a tube of radius R = 1.8 cmplus two parallel flat extensions. Current i = 35 mAis distributed uniformly across the width so that the tube is effectively a one-turn solenoid. Assume that the magnetic field outside the tube is negligible and the field inside the tube is uniform. (a) What is the magnetic field magnitude inside the tube? (b) What is the inductance of the tube (excluding the flat extensions)?

A uniform magnetic fieldB→is perpendicular to the plane of a circular loop of diameter 10 cmformed from wire of diameter2.5 mm and resistivity1.69×108Ω-m. At what rate must the magnitude ofB→change to induce a 10Acurrent in the loop?

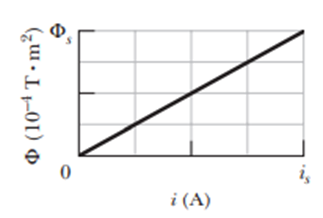

In Figure (a), the inductor has 25 turns and the ideal battery has an emf of 16 V. Figure (b) gives the magnetic fluxφ through each turn versus the current i through the inductor. The vertical axis scale is set by φs=4.0×10-4Tm2, and the horizontal axis scale is set by is=2.00AIf switch S is closed at time t = 0, at what ratedidtwill the current be changing att=1.5τL?
