Chapter 30: Q66P (page 900)

A circular loop of wire 50 mmin radius carries a current of 100 A. (a) Find the magnetic field strength. (b) Find the energy density at the center of the loop

Short Answer

Expert verified

$a) B = 1.3 脳 10^{- 3} T b) u_{B} = 0.63 \frac{J}{m^{3}}$

Step by step solution

01

Given

i) Radius of the circular loop $R = 50 mm = 50 脳 10^{- 3} m$

ii) Current in the circular loop $i = 100 A$

02

Understanding the concept

We can use the formula of magnetic field at the center of the current loop to find it. Using this magnetic field into the formula of the energy density at that point, we can find the energy density at the center of the loop.

Formula:

$B = 渭_{0} i / 2 R u_{B} = B^{2} / 2 渭_{0}$

03

(a) Calculate the magnetic field strength

The magnetic field at the center of loop is given by

$B = \frac{渭_{0} i}{2 R} B = \frac{(4 脳 10^{- 7} \frac{H}{m}) (100 A)}{2 (50 脳 10^{- 3} m)} B = 1.3 脳 10^{- 3} T$

Therefore, the magnetic field strength is $1.3 脳 10^{- 3} T$ .

04

(b) Calculate the energy density at the center of the loop

The energy density at the centre of the loop is given by

$u_{B} = \frac{B^{2}}{2 渭_{0}} u_{B} = \frac{{(1.3 脳 10^{- 3} T)}^{2}}{2 (4 蟺脳 10^{- 7} \frac{H}{m})} u_{B} = 0.63 \frac{J}{m^{3}}$

Therefore, energy density at the center of the loop is role="math" localid="1661424939827" $0.63 J / m^{3}$ .

Unlock Step-by-Step Solutions & Ace Your Exams!

Full Textbook Solutions
Get detailed explanations and key concepts
Unlimited Al creation
Al flashcards, explanations, exams and more...
Ads-free access
To over 500 millions flashcards
Money-back guarantee
We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

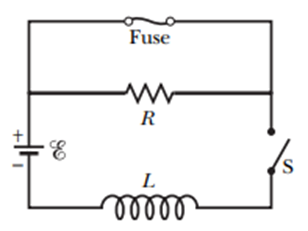

In Figure, $R = 15 惟, L = 5.0 H$ the ideal battery has $蔚 = 10 V$ , and the fuse in the upper branch is an ideal3.0 A fuse. It has zero resistance as long as the current through it remains less than3.0 A . If the current reaches3.0 A , the fuse 鈥渂lows鈥� and thereafter has infinite resistance. Switch S is closed at timet = 0 . (a) When does the fuse blow? (Hint: Equation 30-41 does not apply. Rethink Eq. 30-39.) (b) Sketch a graph of the current i through the inductor as a function of time. Mark the time at which the fuse blows.
