Chapter 30: Q64P (page 900)
Att=0, a battery is connected to a series arrangement of a resistor and an inductor. At what multiple of the inductive time constant will the energy stored in the inductor鈥檚 magnetic field be 0.500its steady-state value?
Over 30 million students worldwide already upgrade their learning with 91影视!
All the tools & learning materials you need for study success - in one app.
Get started for free
In Figure, a rectangular loop of wire with lengthis placed near an infinitely long wire carrying current i = 4.7 A. The loop is then moved away from the wire at constant speed v = 3.2 mm/s. When the center of the loop is at distance r = 1.5b, (a) what is the magnitude of the magnetic flux through the loop?(b) what is the current induced in the loop?

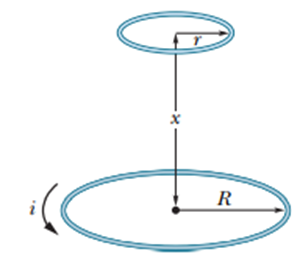

The figure shows two parallel loops of wire having a common axis. The smaller loop (radius r) is above the larger loop (radius R) by a distancex>>R. Consequently, the magnetic field due to the counterclockwise current i in the larger loop is nearly uniform throughout the smaller loop. Suppose that x is increasing at the constant rate. (a)Find an expression for the magnetic flux through the area of the smaller loop as a function of x. (b)In the smaller loop, find an expression for the induced emf. (c)Find the direction of the induced current.
The flux linkage through a certain coil of resistance would be if there were a current ofin it. (a) Calculate the inductance of the coil. (b) If a 6.0Videal battery were suddenly connected across the coil, how long would it take for the current to rise from 0 to 2.5 A?
One hundred turns of (insulated) copper wire are wrapped around a wooden cylindrical core of cross-sectional area . The two ends of the wire are connected to a resistor. The total resistance in the circuit is. If an externally applied uniform longitudinal magnetic field in the core changes from 1.60 Tin one direction to1.60 T in the opposite direction, how much charge flows through a point in the circuit during the change?
A long solenoid has a diameter of 12.0 cm.When a current i exists in its windings, a uniform magnetic field of magnitude B = 30.0 mTis produced in its interior. By decreasing i, the field is caused to decrease at the rate of .(a) Calculate the magnitude of the induced electric field 2.20 cmfrom the axis of the solenoid.
(b) Calculate the magnitude of the induced electric field 8.20 cmfrom the axis of the solenoid.
