A man looks through a camera toward an image of a hummingbird in a plane mirror. The camera is 4.30m in front of the mirror. The bird is at the camera level, 5.00mto the man鈥檚 right and 3.30mfrom the mirror. What is the distance between the camera and the apparent position of the bird鈥檚 image in the mirror?

Short Answer

Expert verified

The distance between the camera and the apparent position of the bird鈥檚 image in the mirror is 9.1 m.

Step by step solution

01

Step 1: Given data:

Distance between the camera and the mirror,d1=4.3m.

Distance between the mirror and the bird, d2=3.30m.

Distance between the camera and the bird, d3=5.00m.

02

Determining the concept:

Use Pythagorean Theorem to find the distance between the camera and the apparent position of the bird鈥檚 image in the mirror. It states that the area of the square whose side is the hypotenuse is equal to the sum of the areas of the squares on the other two sides.

Formulae:

For the right triangle, if c is the hypotenuse and a andb are the other two sides, then

a2+b2=c2

03

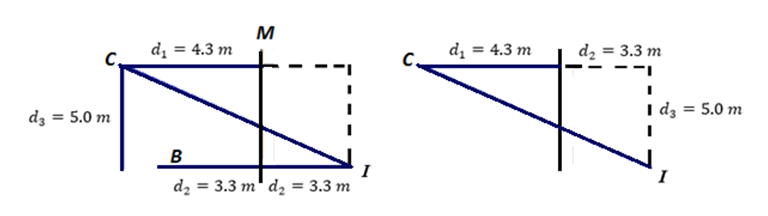

(a) Determining the distance between the camera and the apparent position of the bird’s image in the mirror:

The bird is at a distance d2 in front of the mirror, and the plane of its image is at the same distance d2 behind the mirror.

The lateral distance between the camera and the bird is d3and the distance between the camera, and the bird is d1.

Construct a right triangle out of d3, and the distance between the camera, and the image plane d1+d2.

Consider the distance between the camera and the apparent image of the bird d.

By applying the Pythagorean Theorem, the distance between the camera, and the apparent image is,

role="math" localid="1662977311966" d=d1+d22+d32=4.30+3.302+5.002=57.76+25=9.1m

Hence, the distance between the camera and the apparent position of the bird鈥檚 image in the mirror is 9.1m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A moth at about eye level is10cmin front of a plane mirror; a man is behind the moth,30cmfrom the mirror. What is the distance between man鈥檚 eyes and the apparent position of the moth鈥檚 image in the mirror?

A pinhole camera has the hole a distance12cmfrom the film plane, which is a rectangle of height 8.0cmand width 6.0cm . How far from a painting of dimensions 50cm by 50cmshould the camera be placed so as to get the largest complete image possible on the film plane?

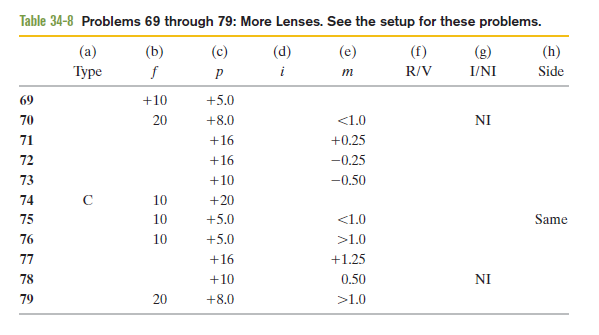

69 through 79 76, 78 75, 77 More lenses. Object ostands on the central axis of a thin symmetric lens. For this situation, each problem in Table 34-8 refers to (a) the lens type, converging C or diverging D , (b) the focal distance f , (c) the object distance p, (d) the image distance i, and (e) the lateral magnification m. (All distances are in centimeters.) It also refers to whether (f) the image is real Ror virtual V, (g) inverted I or non-inverted (NI) from O, and (h) on the same side of the lens as Oor on the opposite side. Fill in the missing information, including the value of m when only an inequality is given, where only a sign is missing, answer with the sign.

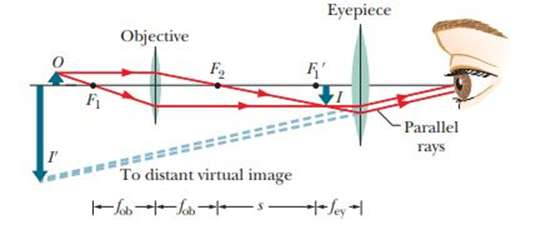

In a microscope of the type shown in Fig. 34-20, the focal length of the objective is 4.00 cm, and that of the eyepiece is 8.00 cm. The distance between the lenses is 25.00 cm. (a) What is the tube length s? (b) If image I in Fig. 34-20 is to be just inside focal point F1, how far from the objective should the object be? What then are (c) the lateral magnification m of the objective, (d) the angular magnification m of the eyepiece, and (e) the overall magnification M of the microscope?
