A charged particle causes an electric flux of -750 N.m2/Cto pass through a spherical Gaussian surface of 10.0 cmradius centered on the charge.

(a) If the radius of the Gaussian surface were doubled, how much flux would pass through the surface?

(b) What is the charge of the particle?

Short Answer

Expert verified

a) If the radius of the Gaussian surface were doubled, the amount of flux passing through the surface is-750N.m2/C .

b) Charge on the particle is -6.64×109C.

Step by step solution

01

Listing the given quantities

  • The electric flux =-750N.m2/C
  • Gaussian surface radius = 10.0 cm
02

Understanding the concept of Gauss law

Gauss law describes the relation between charge and electric field in a static situation. The equation for Gauss law is,

ε0∅=qenc

Here, qencis the net charge inside an imaginary closed surface and∅ is the net flux of the electric field through the surface.

03

(a) Calculation of the flux passing through the surface

By doubling the area, the only surface has increased. It does not change the amount of charge enclosed by the surface area. From the equation,

ε0Φ=qenc

We can see that flux depends on the enclosed charge. Therefore, the flux will remain the same as-750N.m2/C .

04

(b) Calculation of the charge on the particle

We use ϕ=q/ε0to calculate the charge as:

q=∅ε0=8.85×10-12C2/N.m2-750N.m2/C=-6.64×10-9C

Therefore, the charge on the particle is -6.64×10-9C.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The electric field in a particular space isE→=(x+2)i^N/C, with xin meters. Consider a cylindrical Gaussian surface of radius that is coaxial with the x-axis. One end of the cylinder is atx=0 . (a) What is the magnitude of the electric flux through the other end of the cylinder at X=2.0m? (b) What net charge is enclosed within the cylinder?

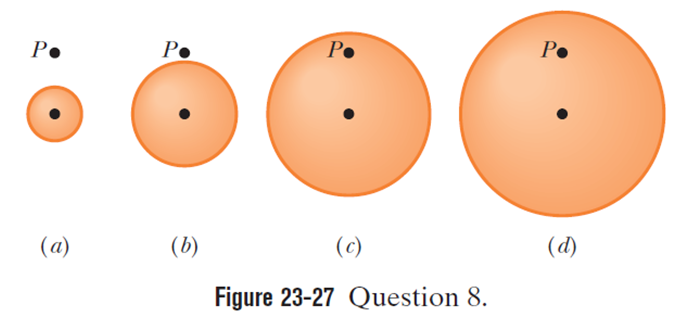

Figure 23-27 shows four solid spheres, each with charge Quniformly distributed through its volume. (a) Rank the spheres according to their volume charge density, greatest first. The figure also shows a point for each sphere, all at the same distance from the center of the sphere. (b) Rank the spheres according to the magnitude of the electric field they produce at point P, greatest first.

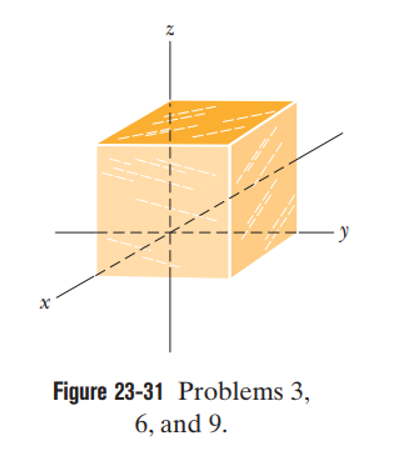

Fig. 23-31 shows a Gaussian surface in the shape of a cube with edge length 1.40m. What are (a) the net flux through the surface and (b) the net chargeqencenclosed by the surface if E→=3.00yj^+E0→with yin meters? What are (c)ϕand (d) qencif E→=-4.00i^+6.00+3.00yj^NC?

Assume that a ball of charged particles has a uniformly distributed negative charge density except for a narrow radial tunnel through its center, from the surface on one side to the surface on the opposite side. Also assume that we can position a proton anywhere along the tunnel or outside the ball. Let Fr be the magnitude of the electrostatic force on the proton when it is located at the ball’s surface, at radius R. As a multiple of R, how far from the surface is there a point where the force magnitude is if we move the proton (a) away from the ball and (b) into the tunnel?

Chargeis uniformly distributed in a sphere of radius R.

(a) What fraction of the charge is contained within the radius is r = R/2.00?

(b) What is the ratio of the electric field magnitude at r=R/2.00to that on the surface of the sphere?
