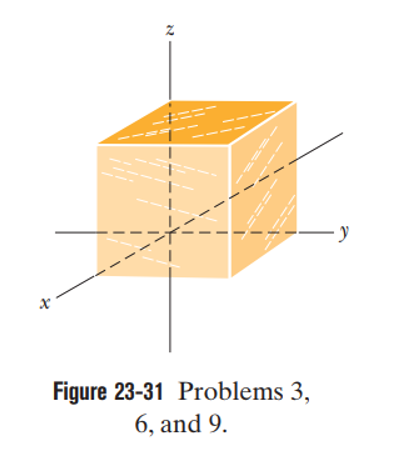

Fig. 23-31 shows a Gaussian surface in the shape of a cube with edge length 1.40m. What are (a) the net flux through the surface and (b) the net chargeqencenclosed by the surface if E→=3.00yj^+E0→with yin meters? What are (c)ϕand (d) qencif E→=-4.00i^+6.00+3.00yj^NC?

Short Answer

Expert verified
  1. The net flux through the surface is 8.23N.m2C .
  2. The net enclosed charge by the surface is 7.29×10-11C.
  3. The net flux through the surface is 8.23Nm2C .
  4. The net enclosed charge is 7.29×10-11C.

Step by step solution

01

The given data

The edge length of the cube,a=1.4m

02

Understanding the concept of Gauss law-planar symmetry

Using the gauss flux theorem, we can get the net flux through the surfaces. Now, using the same concept, we can get the net charge contained in the cube.

Formula:

The electric flux passing through the surface,

ϕ=E.A=q∈01

03

a) Calculation of the net flux

Let the area of the cube,A=1.40m2

Then, the net flux enclosed by the cube is given using equation (1) as:

ϕ=3.00yj^.-Aj^y=0m+3.00yj^.Aj^y=1.40mϕ=3.00NC1.40m2ϕ=8.23N.m2/C

Hence, the value of the flux is8.23N.m2/C .

04

b) Calculation of the net charge enclosed by the cube

The charge enclosed by the cube is now given using equation (i) as:

qenc=8.85×10-12C2/Nm28.23N.m2/Cqenc=7.29×10-11C

Hence, the value of the charge is 7.29×10-11C.

05

c) Calculation of the net flux

Let the area of the cube,A=1.40m2

The electric field can be re-written as:E→=3.00yj^+E0→,

where E0→=-4.00i^+6.00j^ is a constant field which does not contribute to the net flux through the cube.

Thus, the net flux remains constant for this field and is8.23N.m2/C.

06

d) Calculation of the net charge enclosed by the cube

The charge enclosed by the cube is now given using equation (1) such that,

qenc=8.85×10-12C2/Nm28.23N.m2/Cqenc=7.29×10-11C

Hence, the value of the charge is7.29×10-11C .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Two charged concentric spherical shells have radii 10.0cmand 15.0cm . The charge on the inner shell is 4.0×10-8C , and that on the outer shell is2.0×10-8C. Find the electric field (a) atr=12.0cmand (b) atr=20.0cm.

In Fig. 23-49, a small, non-conducting ball of massm=1.0mgand charge q=2.0×10-8C (distributed uniformly through its volume) hangs from an insulating thread that makes an angle θ=30owith a vertical, uniformly charged non-conducting sheet (shown in cross-section). Considering the gravitational force on the ball and assuming the sheet extends far vertically and into and out of the page, calculate the surface charge density s of the sheet.

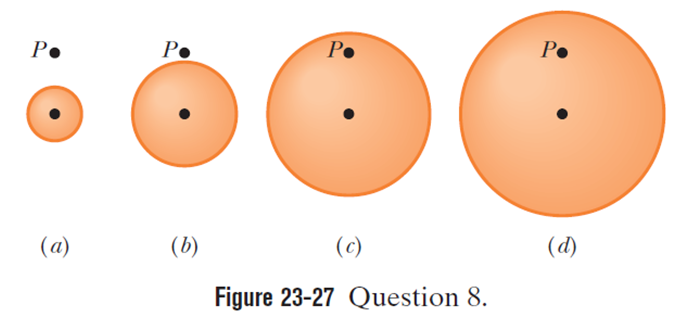

Figure 23-27 shows four solid spheres, each with charge Quniformly distributed through its volume. (a) Rank the spheres according to their volume charge density, greatest first. The figure also shows a point for each sphere, all at the same distance from the center of the sphere. (b) Rank the spheres according to the magnitude of the electric field they produce at point P, greatest first.

Equation 23-11 (E=σ/ε0) gives the electric field at points near a charged conducting surface. Apply this equation to a conducting sphere of radius rand charge q, and show that the electric field outside the sphere is the same as the field of a charged particle located at the center of the sphere.

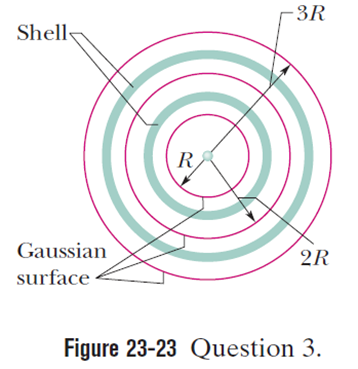

Figure 23-23 shows, in cross section, a central metal ball, two spherical metal shells, and three spherical Gaussian surfaces of radii R, 2R, and 3R, all with the same center. The uniform charges on the three objects are: ball, Q; smaller shell, 3Q; larger shell, 5Q. Rank the Gaussian surfaces according to the magnitude of the electric field at any point on the surface, greatest first.
