Chapter 5: Q8Q (page 115)

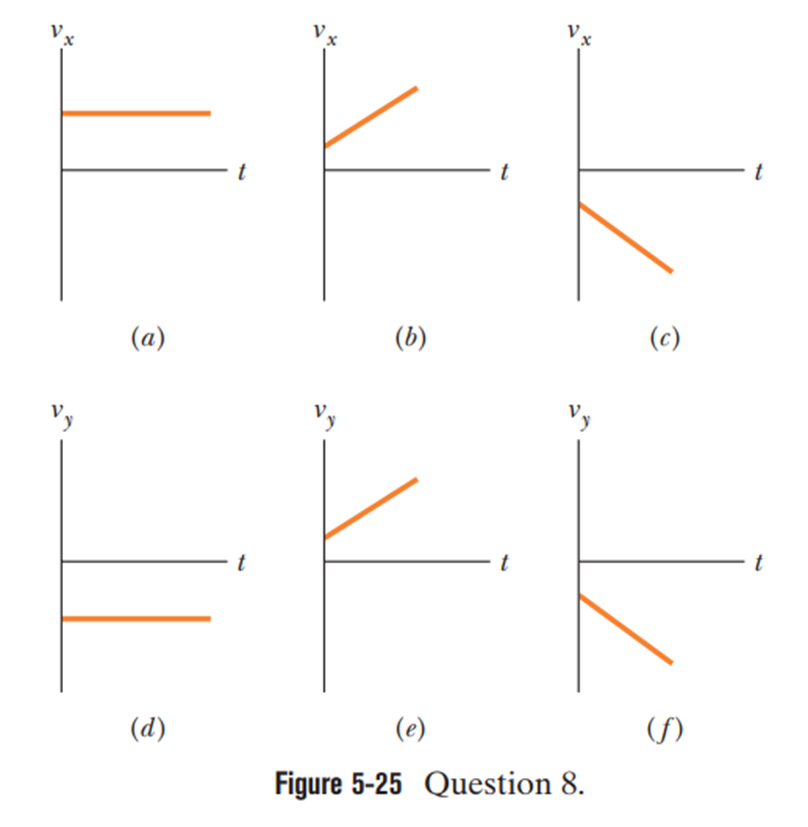

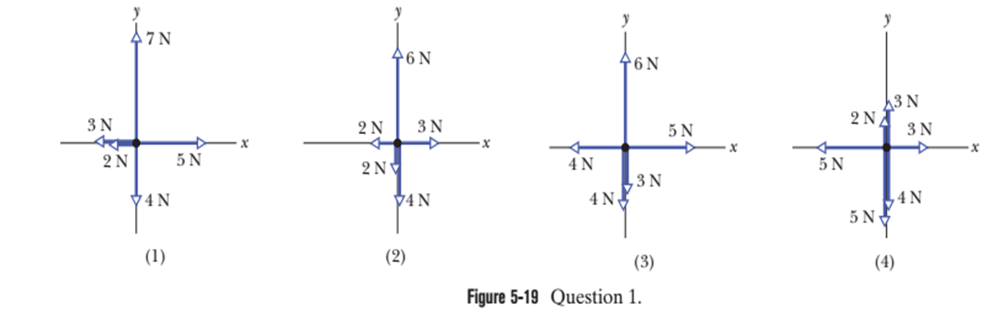

Figure 5-25 gives three graphs of velocity component and three graphs of velocity component . The graphs are not to scale. Which graph and which graph best correspond to each of the four situations in Question 1 and Fig. 5-19?

Short Answer

Expert verified
  1. Graph 鈥榓鈥� of Vxcorresponds to case 1 of figure 5.19.
  2. Graph 鈥榖鈥� of Vxcorresponds to case 3 of figure 5.19.
  3. Graph 鈥榗鈥� of Vxcorresponds to cases 2 and 4 of figure 5.19.
  4. Graph 鈥榙鈥� of Vycorresponds to case 2 of figure 5.19.
  5. Graph 鈥榚鈥� ofVycorresponds to case 1 of figure 5.19
  6. Graph 鈥榝鈥� ofVycorresponds to case 3 and case 4 of figure 5.19

Step by step solution

01

Given information

The graph is given in figure 5-25

02

To understand the concept

We can calculate the velocity of an object from the graph of force by assuming the mass value as constant.

03

(a) To graph a of Vx corresponds to case 1 of figure 5.19

Graph 鈥榓鈥�

Velocity component Vx is constant for the given values of the time. It means the acceleration for an object and hence the x component of force is zero. This is case 1 of figure 5.19, as in that figure forces on the x-axis get canceled out.

04

(b) graph a of Vx corresponds to case 3 of figure 5.19

Graph 鈥榖鈥�

This graph shows that the value of Vx is increasing with time. So, this graph corresponds to case 3, as in this case, the force component along x is negative.

05

(c) To graph a of Vx corresponds to cases 2 and 4 of figure 5.19

Graph 鈥榗鈥�

This graph shows the velocity Vx increasing in the negative direction. So, this graph corresponds to cases 2 and 4.

06

(d) To graph a of Vx corresponds to case 2 of figure 5.19

Graph 鈥榙鈥�

This graph has a constant value for the y component of velocity. So, this corresponds to case 2.

07

(e) To graph a of Vx corresponds to case 1 of figure 5.19

Graph 鈥榚鈥�

This graph shows the Vy values are increasing with time t. Hence, it corresponds to case 1.

08

(f) To graph a of Vx corresponds to cases 3 and 4 of figure 5.19

Graph 鈥榝鈥�

This graph shows the Vy component increasing in a negative direction. Hence, it corresponds to case 3 and case 4.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

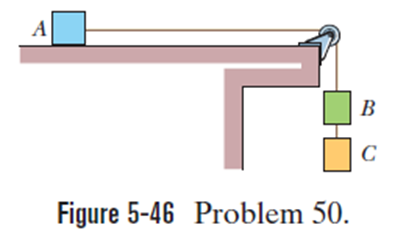

In Figure 5-46, three ballot boxes are connected by cords, one of which wraps over a pulley having negligible friction on its axle and negligible mass. The three masses aremA=30.0kg,mB=40.0kg, andmc=10.0kg. When the assembly is released from rest, (a) what is the tension in the cord connecting Band C, and

(b) how far does Amove in the first 0.250 s (assuming it does not reachthe pulley)?

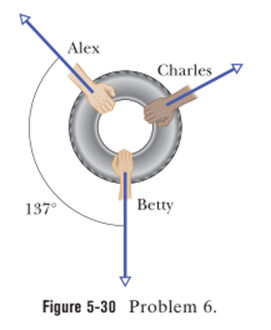

In a two-dimensional tug-of-war, Alex, Betty, and Charles pull horizontally on an automobile tire at the angles shown in the overhead view of Fig. 5-30.The tire remains stationary in spite of the three pulls.
