Chapter 5: Q6Q (page 115)

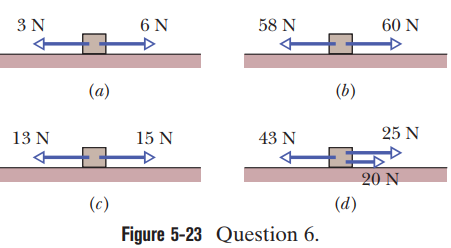

Figure 5-23 shows the same breadbox in four situations where horizontal forces are applied. Rank the situations according to the magnitude of the box鈥檚 acceleration, greatest first.

Short Answer

Expert verified

a>b=C=d

Step by step solution

01

Given information

Figure 5-23.

02

To understand the concept

The problem is based on Newton鈥檚 second law of motion. The law states that the acceleration of an object is dependent on the net force acting upon the object and the mass of the object. Acceleration of the box can be found by calculating the net force acting on each box. The net force would be the vector sum of all the forces acting on that box.

Formula:


Fnet=ma

03

Step 3: To rank the situation according to the magnitude of the box’s acceleration, the greatest first

We assume that the right-hand side direction is positive.

So, for the figure (a),

Fa=6N-3N=3Naa=3Nm

For figure (b),

Fb=60N-58N=2Nab=2Nm

For figure (c),

Fc=15N-13N=2Nac=2Nm

For figure (d),

role="math" localid="1656995312985" Fd=25N+20N-23N=2Nad=2Nm

From the above values of acceleration for each figure, we can conclude that,

aa>ab=ac=(ad)

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A worker drags a crate across a factory floor by pulling on a rope tied to the crate. The worker exerts a force of magnitude f = 450Non the rope, which is inclined at an upward angle胃=38掳 to the horizontal, and the floor exerts a horizontal force of magnitude f = 125 Nthat opposes the motion. Calculate the magnitude of the acceleration of the crate if (a) its mass is 310kg and (b) its weight is 310 N.

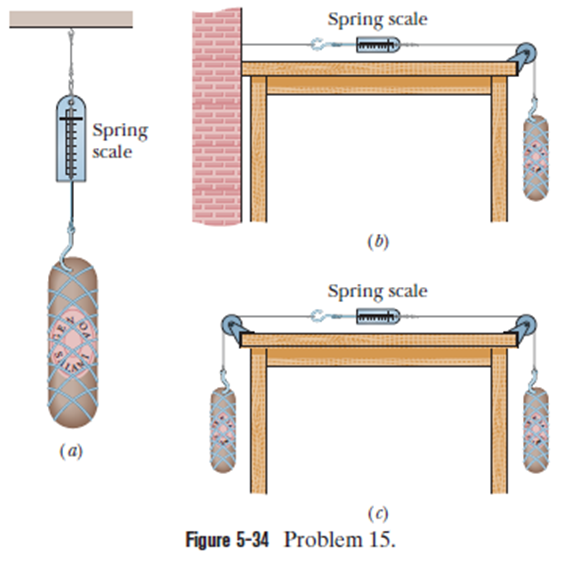

(a) An 11.0 kgSalami is supported by a cord that runs to a spring scale, which is supported by a cord hung from the ceiling (Figure-a). What is the reading on the scale, which is marked in weight units? (b) In Figure-bthe salami is supported by a cord that runs around a pulley and to a scale. The opposite end of the scale is attached by a cord to a wall. What is the reading on the scale? (c) In Figure-c the wall has been replaced with second11.0 kg salami, and the assembly is stationary. What is the reading on the scale?

Figure 5-60 shows a box of dirty money (mass m1=3.0kg) on a frictionless plane inclined at angle 胃1=30掳. The box is connected via a cord of negligible mass to a box of laundered money (mass m2=2.0kg) on a frictionless plane inclined at angle 胃2=60掳.The pulley is frictionless and has negligible mass. What is the tension in the cord?

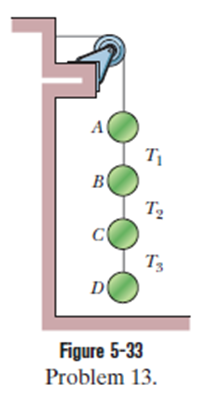

Figure 5.33 shows an arrangement in which four disks are suspended by cords. The longer, top cord loops over a frictionless pulley and pulls with a force of magnitude 98 N on the wall to which it is attached. The tensions in the three shorter cords areT1=58.8N,T2=49.0Nand T3=9.8N. (a) What is the mass of disk A (b) What is the mass of disk B, (c) What is the mass of disk C, and (d) What is the mass of disk D?
