A car traveling at 53Km/hhits a bridge abutment. A passenger in the car moves forward a distance of65cm(with respect to the road) while being brought to rest by an inflated air bag. What magnitude of force (assumed constant) acts on the passenger’s upper torso, which has a mass of41kg?

Short Answer

Expert verified

The magnitude of force acts on a passenger is-6.8×103N.

Step by step solution

01

The given data

  • Speed of the car, vi=53km/hor14.72m/s.
  • Distance traveled by the car,x=65cmor0.65m.
  • Mass of passengers, m=41kg.
02

Understanding the concept of Newton’s 2nd law

As we know the initial and final speed of the passenger and the distance traveled by him, using kinematic equations, we can find the acceleration (Deceleration) of the person.

Using this acceleration and Newton’s 2nd law we can find the force acting on it.

Formula:

The third kinematic equation of motion,vi2=vf2+2ax (i)

The force according to Newton’s second law,F=ma (ii)

03

Calculation of magnitude of force

Using the given values and equation (i), we get the acceleration of the car as:

(14.7m/s)2=0+2×a×0.65m216.09=1.3×aa=-216.11.3=-166.22m/s2

Now, using equation (ii) and the given values, we get the magnitude of force as follows:

F=41kg×(-166.22m/s2)=-6815.52N=-6.8×103N

Negative sign shows that the force is acting in the opposite direction of the motion and the magnitude value of force is6.8×103N .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

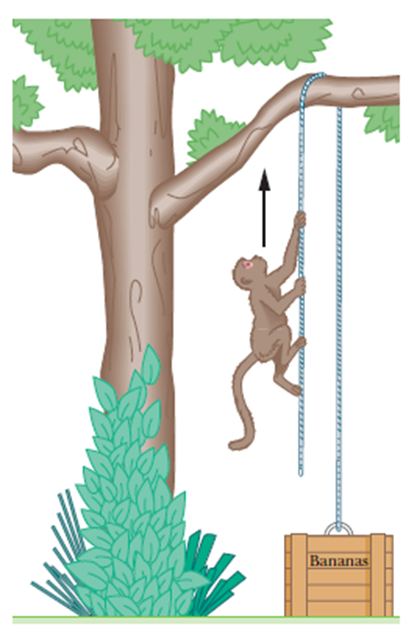

A 10 kgmonkey climbs up a massless rope that runs over a frictionless tree limb and back down to a 15 kgpackage on the ground (Figure). (a) What is the magnitude of the least acceleration the monkey must have if it is to lift the package off the ground? If, after the package has been lifted, the monkey stops its climb and holds onto the rope, (b) What is the magnitude and (c) What is the direction of the monkey’s acceleration and (d) What is the tension

in the rope?

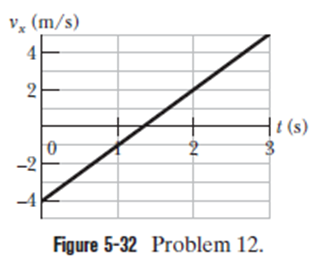

Two horizontal forces F1→and F2→act on a 4.0kgdisk that slides over frictionless ice, on which an x-ycoordinate system is laid out. Force F1→is in the positive direction of the xaxis and has a magnitude of 7.0N. Force F2→has a magnitude of9.0N. Figure gives the xcomponent Vxof the velocity of the disk as a function of time tduring the sliding. What is the angle between the constant directions of forces F1→and F2→?

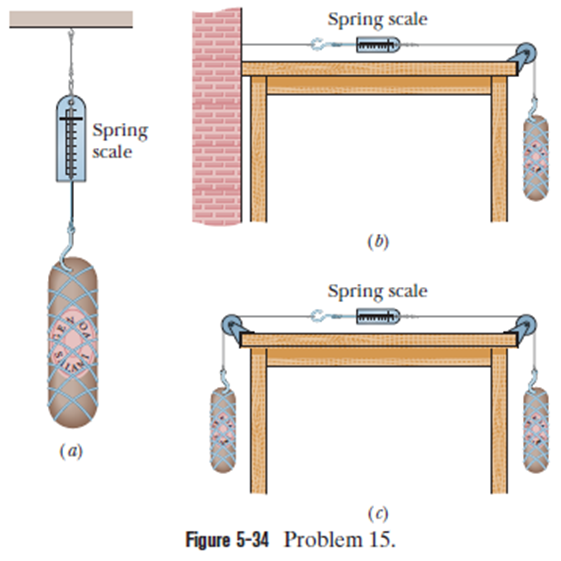

(a) An 11.0 kgSalami is supported by a cord that runs to a spring scale, which is supported by a cord hung from the ceiling (Figure-a). What is the reading on the scale, which is marked in weight units? (b) In Figure-bthe salami is supported by a cord that runs around a pulley and to a scale. The opposite end of the scale is attached by a cord to a wall. What is the reading on the scale? (c) In Figure-c the wall has been replaced with second11.0 kg salami, and the assembly is stationary. What is the reading on the scale?

In Figure 5-36, let the mass of the block be 8.5kgand the angle θ be30°. Find (a) the tension in the cord and (b) the normal force acting on the block. (c) If the cord is cut, find the magnitude of the resulting acceleration of the block.

In earlier days, horses pulled barges down canals in the manner shown in Figure. Suppose the horse pulls on the rope with a force of7900Nat an angle of θ=18°to the direction of motion of the barge, which is headed straight along the positive direction of an xaxis. The mass of the barge is9500kg, and the magnitude of its acceleration is 0.12m/s2. (a) What is the magnitude and (b) What is the direction (relative to positive x) of the force on the barge from the water?

See all solutions
