Chapter 14: Q13P (page 407)

At a depth of 10.9 km, the Challenger Deep in the Marianas Trench of the Pacific Ocean is the deepest site in any ocean. Yet, in 1960, Donald Walsh and Jacques Piccard reached the Challenger Deep in the bathyscaph Trieste. Assuming that seawater has a uniform density of1024kg/m3, approximate the hydrostatic pressure (in atmospheres) that the Trieste had to withstand. (Even a slight defect in the Trieste structure would have been disastrous.)

Short Answer

Expert verified

Hydrostatic pressure in atmospheres is1.08脳103atm

Step by step solution

01

The given data

  • Density of seawater,p=1024kg/m3
  • Depth,h=10.9kmor10.9脳103m
02

Understanding the concept of hydrostatic pressure

To solve for pressure, we can use the formula for hydrostatic pressure difference, which depends on density and height. Hydrostatic pressure is that, which is exerted by a fluid at any point of time at equilibrium due to the force applied by gravity.

Formula:

Pressure applied on a fluid surface, p = pgh (i)

03

Calculation of hydrostatic pressure in atmospheres

Using equation (i) and the given values, the pressure can be written as:

p=1024kg/m3脳9.8m/s2脳10.9脳103mp=1.09脳108Pa(鈭�1atm=1.01脳105Pa)=1.09脳108脳1atm1.01脳105=1.08脳103atm

Hence, the value of hydrostatic pressure is1.08脳103atm

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

An iron anchor of density7870kgm3appears 200N lighter in water than in air. (a) What is the volume of the anchor? (b) How much does it weigh in air?

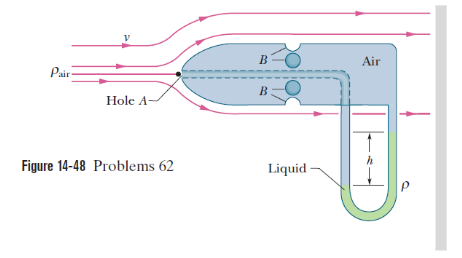

A pitot tube (Figure) is used to determine the airspeed of an airplane. It consists of an outer tube with a number of small holes B (four are shown) that allow air into the tube; that tube is connected to one arm of a U-tube. The other arm of the U-tube is connected to hole Aat the front end of the device, which points in the direction the plane is headed. At Athe air becomes stagnant so that vA=0. At B, however, the speed of the air presumably equals the airspeed vof the plane.

(a) Use Bernoulli鈥檚 equation to show that, v=p铃�gh蚁airwhere 蚁is the density of the liquid in the U-tube and his the difference in the liquid levels in that tube.

(b) Suppose that the tube contains alcohol and the level difference his 26.0cm. What is the plane鈥檚 speed relative to the air? The density of the air is 1.03kg/m3and that of alcohol is 810kg/m3.

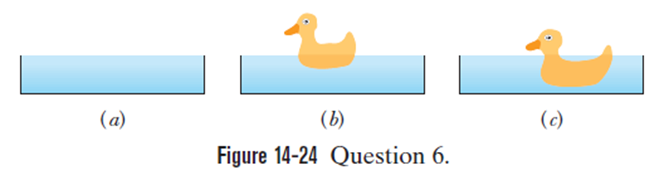

Figure 14-24 shows three identical open-top containers filled to the brim with water; toy ducks float in two of them. Rank the containers and contents according to their weight, greatest first.

Figure 14-30 shows a modified U-tube: the right arm is shorter than the left arm. The open end of the right arm is height d=10.0cmabove the laboratory bench. The radius throughout the tube is 1.50cm. Water is gradually poured into the open end of the left arm until the water begins to flow out the open end of the right arm. Then a liquid of density 0.80g/cm3is gradually added to the left arm until its height in that arm is8.0cm(it does not mix with the water). How much water flows out of the right arm?

Flotation device is in the shape of a right cylinder, with a height of 0.500mand a face area of 4.00m2on top and bottom, and its density is localid="1657554653816" 0.400 times that of fresh water. It is initially held fully submerged in fresh water, with its top face at the water surface. Then it is allowed to ascend gradually until it begins to float. How much work does the buoyant force do on the device during the ascent?
