Chapter 14: Q6Q (page 406)

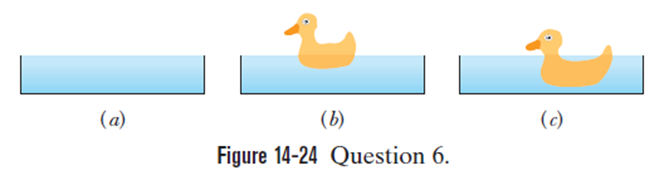

Figure 14-24 shows three identical open-top containers filled to the brim with water; toy ducks float in two of them. Rank the containers and contents according to their weight, greatest first.

Short Answer

Expert verified

The rank of containers and contents according to their weight, greatest first isWa=Wb=Wc

Step by step solution

01

The given data

Three containers are shown with different situations, where toy ducks float in two of them.

02

Understanding the concept of the buoyant force

For floating conditions, the buoyant force is balanced by the weight of the fluid displaced. The net force is due to the weight of the container only.

Formula:

The weight of the upward force applied on the body due to buoyancy,

Wbody=蚁watergVdisplaced (i)

03

Calculation of the rank of the containers and contents according to their weight

For container (a), there is no object floating on water, so therewould be nochange in the weight.

For container (b) & (c), the duck is floating on water. Weight of the duck is balanced by the buoyant force. There is no change in the water level. So the total weight would remain the same considering equation (i), as no volume is displaced.

Hence, there would be no change in the weight of the container.

Therefore, the rank of containers and contents according to their weight isWa=Wb=Wc.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

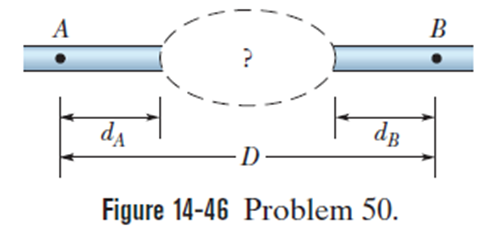

Figure shows two sections of an old pipe system that runs through a hill, with distances dA=dB=30mand D=110 m. On each side of the hill, the pipe radius is 2.00 cm. However, the radius of the pipe inside the hill is no longer known. To determine it, hydraulic engineers first establish that water flows through the left and right sections at 2.50 m/s. Then they release a dye in the water at point A and find that it takes 88.8 sto reach point B.

What is the average radius of the pipe within the hill?

A hollow sphere of inner radius 8.0 cmand outer radius 9.0 cmfloats half-submerged in a liquid of density 8.00kg/m3. (a) What is the mass of the sphere? (b) Calculate the density of the material of which the sphere is made.

The intake in Figure has cross-sectional area of 0.74m2and water flow at 0.40ms. At the outlet, distance D=180mbelow the intake, the cross-sectional area is smaller than at the intake, and the water flows out at 9.5ms into the equipment. What is the pressure difference between inlet and outlet?

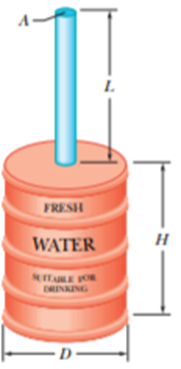

In Figure, an open tube of length L=1.8mand cross-sectional area A= 4.6cm2cmis fixed to the top of a cylindrical barrel of diameterD=1.2mand height H=1.8m. The barrel and tube are filled with water (to the top of the tube).Calculate the ratio of the hydrostatic force on the bottom of the barrel to the gravitational force on the water contained in the barrel. Why is that ratio not equal to 1.0? (You need not consider the atmospheric pressure.)

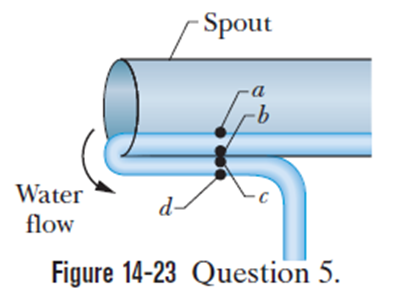

The teapot effect:Water poured slowly from a teapot spout can double back under the spout for a considerable distance (held there by atmospheric pressure) before detaching and falling. In Fig. 14-23, the four points are at the top or bottom of the water layers, inside or outside. Rank those four points according to the gauge pressure in the water there, most positive first.
